The maximum operating temperature range for the MSP430FR2153TDBTR is -40°C to 85°C, as specified in the datasheet. However, it's recommended to operate the device within the recommended operating temperature range of -40°C to 70°C for optimal performance and reliability.
To configure the MSP430FR2153TDBTR for low-power operation, you can use the device's power modes, such as LPM3.5 or LPM4.5, which can be configured using the PMMCTL0 and PMMCTL1 registers. Additionally, you can also use the device's low-power peripherals, such as the low-power oscillator and the low-power brown-out reset, to minimize power consumption.
Yes, the MSP430FR2153TDBTR can operate with a 3V battery. The device has a wide operating voltage range of 1.8V to 3.6V, making it suitable for use with a 3V battery. However, it's recommended to ensure that the battery voltage remains within the recommended operating voltage range to ensure optimal performance and reliability.
The MSP430FR2153TDBTR can be programmed using the Texas Instruments Code Composer Studio (CCS) integrated development environment (IDE) or the IAR Embedded Workbench. You can also use the MSP430FR2153TDBTR's built-in boot loader to program the device using a serial interface, such as UART or I2C.
The maximum clock frequency for the MSP430FR2153TDBTR is 24 MHz, which can be achieved using the device's internal digitally controlled oscillator (DCO). However, the maximum clock frequency may vary depending on the operating voltage and temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSP430FR2153TDBTR Overview

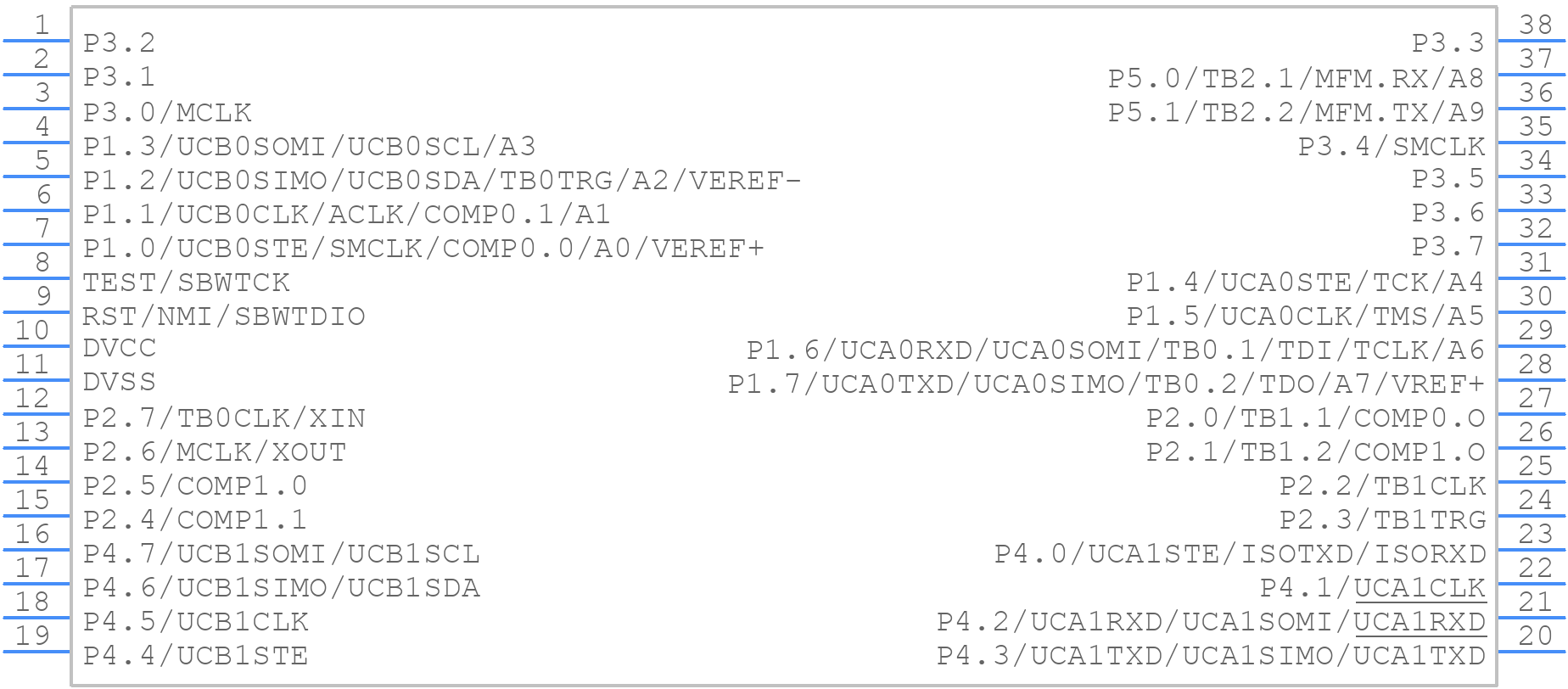

Use the download button to access the MSP430FR2153TDBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
