The maximum operating temperature range for the MSP430FR2155TRHAT is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a reduced frequency and voltage at higher temperatures.
To configure the MSP430FR2155TRHAT for low-power operation, you can use the Low Power Mode (LPM) feature, which allows the device to enter a low-power state when not in use. You can also use the Power Management Module (PMM) to control the power modes and reduce power consumption. Additionally, you can use the FRAM memory's low-power features, such as the Low-Power Mode (LPM) and the Power-Saving Mode (PSM).
Yes, the MSP430FR2155TRHAT can operate with a 3V battery. The device has a wide operating voltage range of 1.8V to 3.6V, making it suitable for use with a 3V battery. However, you should ensure that the battery voltage remains within the specified operating range to ensure proper device operation.
The MSP430FR2155TRHAT can be programmed using the Spy-Bi-Wire (SBW) interface, which is a 2-wire interface that allows for programming and debugging. You can use the Texas Instruments Code Composer Studio (CCS) integrated development environment (IDE) or other third-party tools to program the device.
The maximum clock frequency for the MSP430FR2155TRHAT is 24 MHz, as specified in the datasheet. However, the device can operate at lower frequencies to reduce power consumption and improve performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSP430FR2155TRHAT Overview

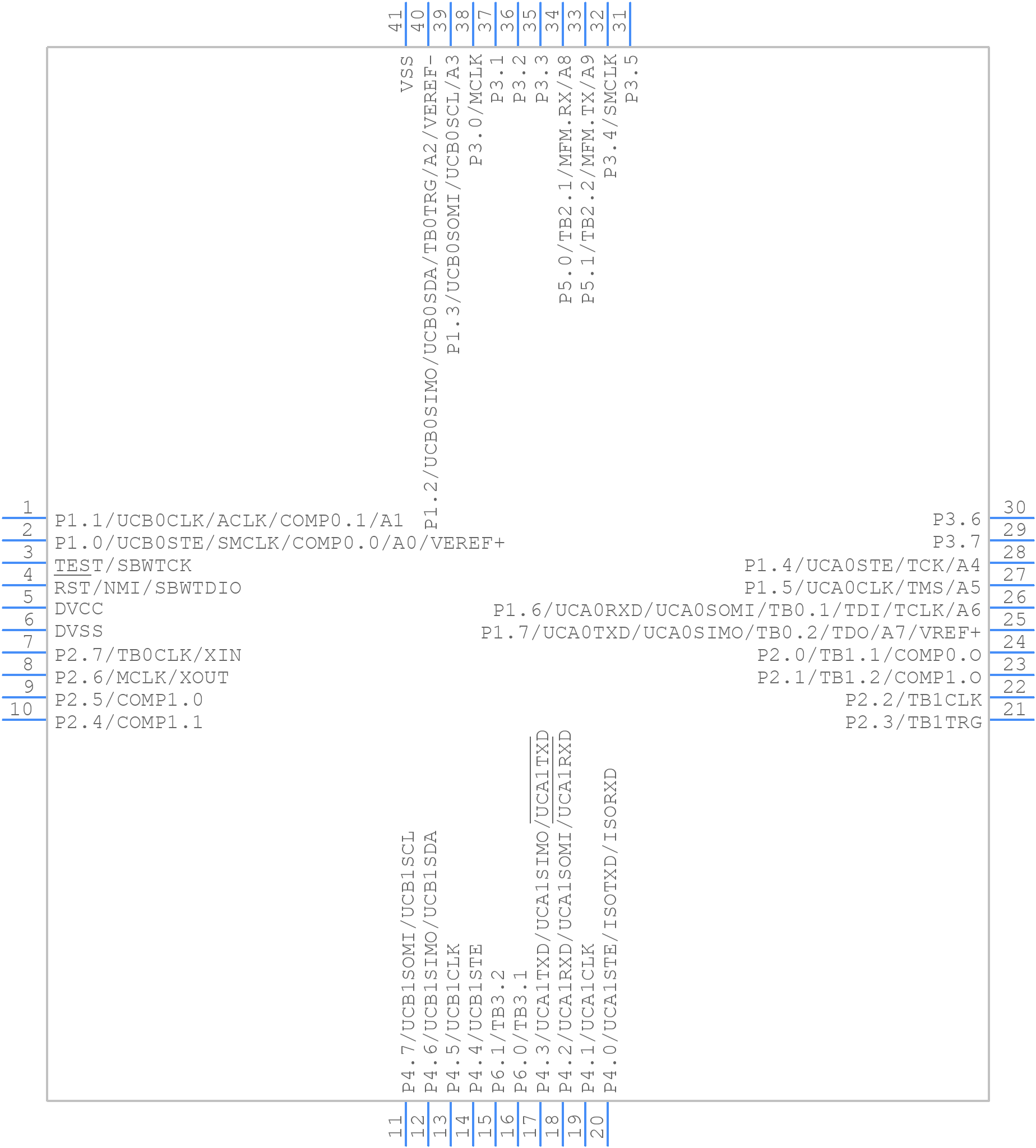

Use the download button to access the MSP430FR2155TRHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
