MSP430FR2433IRGER - Texas Instruments

Description: 16 MHz Ultra-Low-Power Microcontroller with 16 KB FRAM, 4 KB RAM, 10-bit ADC, 19 IO, 4 16-bit Timers

Download MSP430FR2433IRGER Model
Schematic

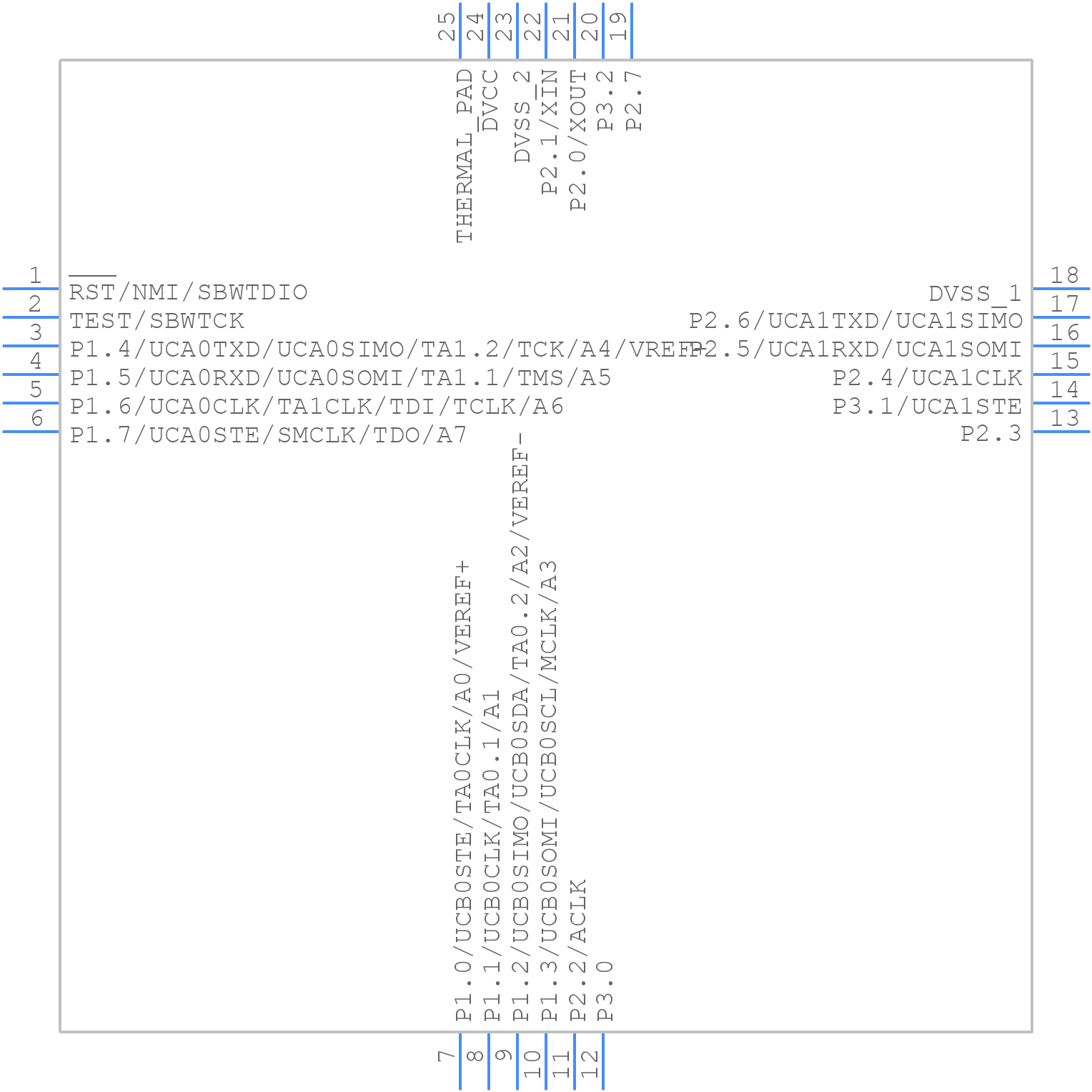

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MSP430FR2433IRGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE (S-PVQFN-N24)_2
click to zoom
3D Models
MSP430FR2433IRGER - Texas Instruments  - 3D model - Quad Flat No-Lead - RGE (S-PVQFN-N24)_2
click to zoom

MSP430FR2433IRGER Details

  • Manufacturer Part Number:

    MSP430FR2433IRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-24

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Has ADC:

    YES

  • Additional Feature:

    IT HAS INFORMATION FRAM OF 512 BYTES

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • CPU Family:

    MSP430

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    2

  • Number of External Interrupts:

    16

  • Number of I/O Lines:

    19

  • Number of Terminals:

    24

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    4096

  • ROM (words):

    15360

  • ROM Programmability:

    FRAM

  • Seated Height-Max:

    1 mm

  • Speed:

    16 MHz

  • Supply Current-Max:

    3.48 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSP430FR2433IRGER Overview

Use the download button to access the MSP430FR2433IRGER schematic symbol, PCB footprint, and 3D model.
