MSP430G2102IRSA16R - Texas Instruments

Description: MSP430G2x32, MSP430G2x02 Mixed Signal Microcontroller

Download MSP430G2102IRSA16R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

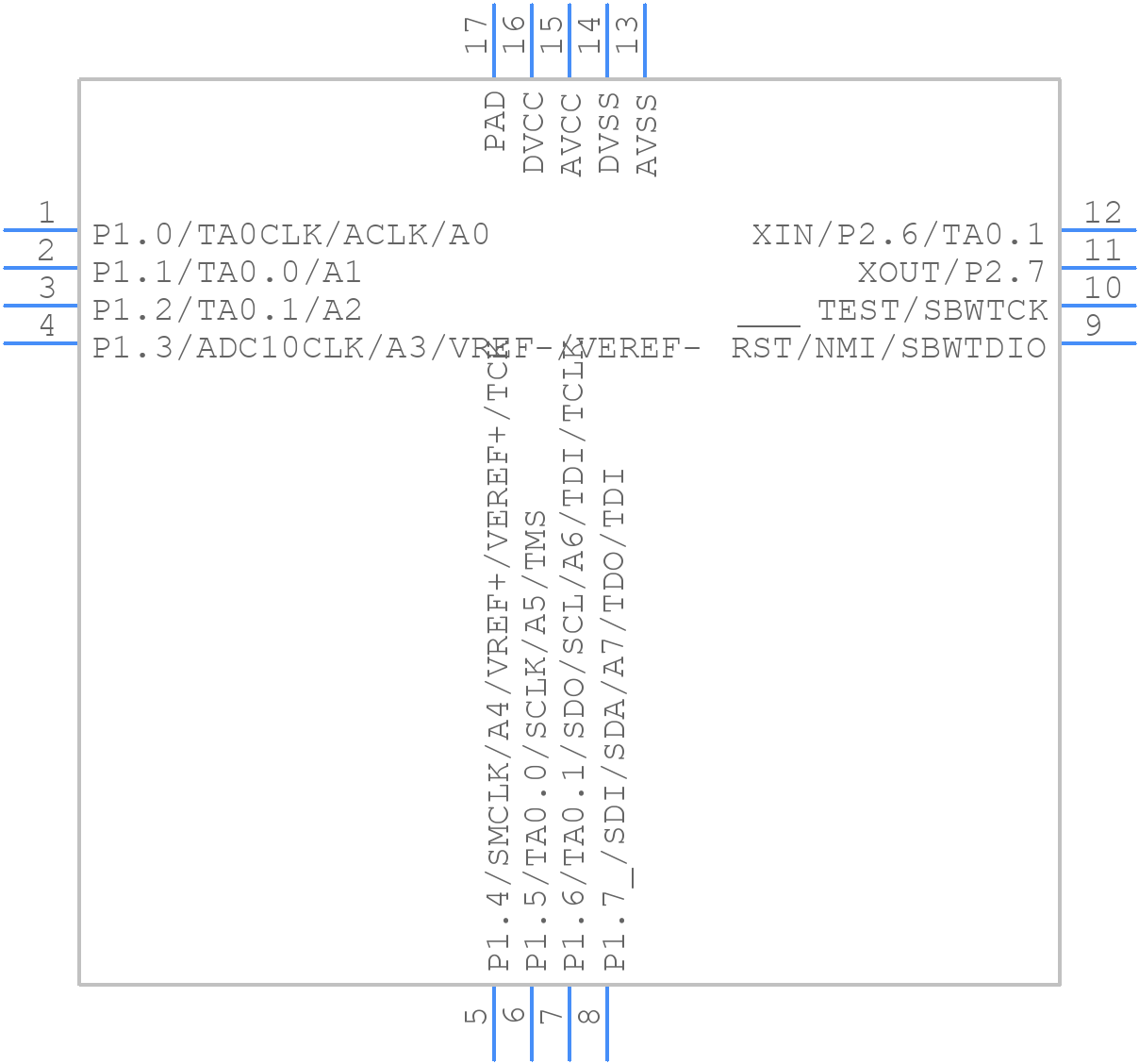

Symbol
MSP430G2102IRSA16R - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
MSP430G2102IRSA16R - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MSP430G2102IRSA16R
click to zoom
3D Models
MSP430G2102IRSA16R - Texas Instruments - 3D model - Quad Flat No-Lead - MSP430G2102IRSA16R
click to zoom

MSP430G2102IRSA16R Details

  • Manufacturer Part Number:

    MSP430G2102IRSA16R

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    VQFN-16

  • Pin Count:

    16

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Has ADC:

    NO

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • CPU Family:

    MSP430

  • Clock Frequency-Max:

    0.032 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    2

  • Number of DMA Channels:

    1

  • Number of I/O Lines:

    10

  • Number of Terminals:

    16

  • Number of Timers:

    4

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    128

  • RAM (words):

    0.125

  • ROM (words):

    1024

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1 mm

  • Speed:

    16 MHz

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.2 V

  • Supply Voltage-Nom:

    2.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MSP430G2102IRSA16R Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 16 MHz. However, it's recommended to use a clock frequency of 12 MHz or less to ensure reliable operation.
  • The GPIO pins can be configured as inputs or outputs using the PxDIR (Port x Direction) register. Setting a bit in PxDIR to 1 configures the corresponding pin as an output, while setting it to 0 configures it as an input.
  • The RST/NMI pin is a dual-function pin that can be used as either a reset input or a non-maskable interrupt (NMI) input. To use it as a reset input, connect it to a reset source and ensure that the RST/NMI pin is configured as a reset input in the system configuration registers. To use it as an NMI input, connect it to an interrupt source and configure the NMI interrupt in the interrupt vector table.
  • The watchdog timer (WDT) can be enabled and configured using the WDTCTL (Watchdog Timer Control) register. The WDT can be used to reset the device if it fails to refresh the WDT within a certain time period. The WDT interval can be set to one of several predefined values using the WDTPS (Watchdog Timer Prescaler) bits in the WDTCTL register.
  • The power consumption of the MSP430G2102 varies depending on the operating mode. In active mode, the current consumption is typically around 1.5 mA at 1 MHz and 3V. In low-power mode 3 (LPM3), the current consumption is typically around 0.5 μA at 3V. In shutdown mode, the current consumption is typically around 0.1 μA at 3V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSP430G2102IRSA16R Overview

Use the download button to access the MSP430G2102IRSA16R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43, or try a keyword search, such as Microcontrollers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
