The maximum clock frequency that can be used with the internal oscillator is 16 MHz. However, it's recommended to use a clock frequency of 12 MHz or less to ensure reliable operation.
To configure the MSP430G2432IRSA16T for low-power operation, you can use the Power Management Module (PMM) to select the lowest possible clock frequency, disable unused peripherals, and use the Low Power Mode (LPM) feature. You can also use the Dynamic Voltage Scaling (DVS) feature to reduce the voltage supply to the core and peripherals.
The maximum current that can be sourced or sunk by the GPIO pins is 4 mA. However, it's recommended to limit the current to 2 mA or less to ensure reliable operation and prevent damage to the device.
To use the USCI module for UART communication, you need to configure the USCI module as a UART, select the correct baud rate, and enable the transmitter and receiver. You can use the USCI_A or USCI_B module for UART communication, depending on the specific requirements of your application.
The JTAG interface is a debugging interface that allows you to connect a debugger or emulator to the MSP430G2432IRSA16T. You can use the JTAG interface to debug your code, set breakpoints, and inspect registers and memory. You need to use a JTAG debugger or emulator, such as the Texas Instruments XDS100v2, to connect to the JTAG interface.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MSP430G2432IRSA16T Overview

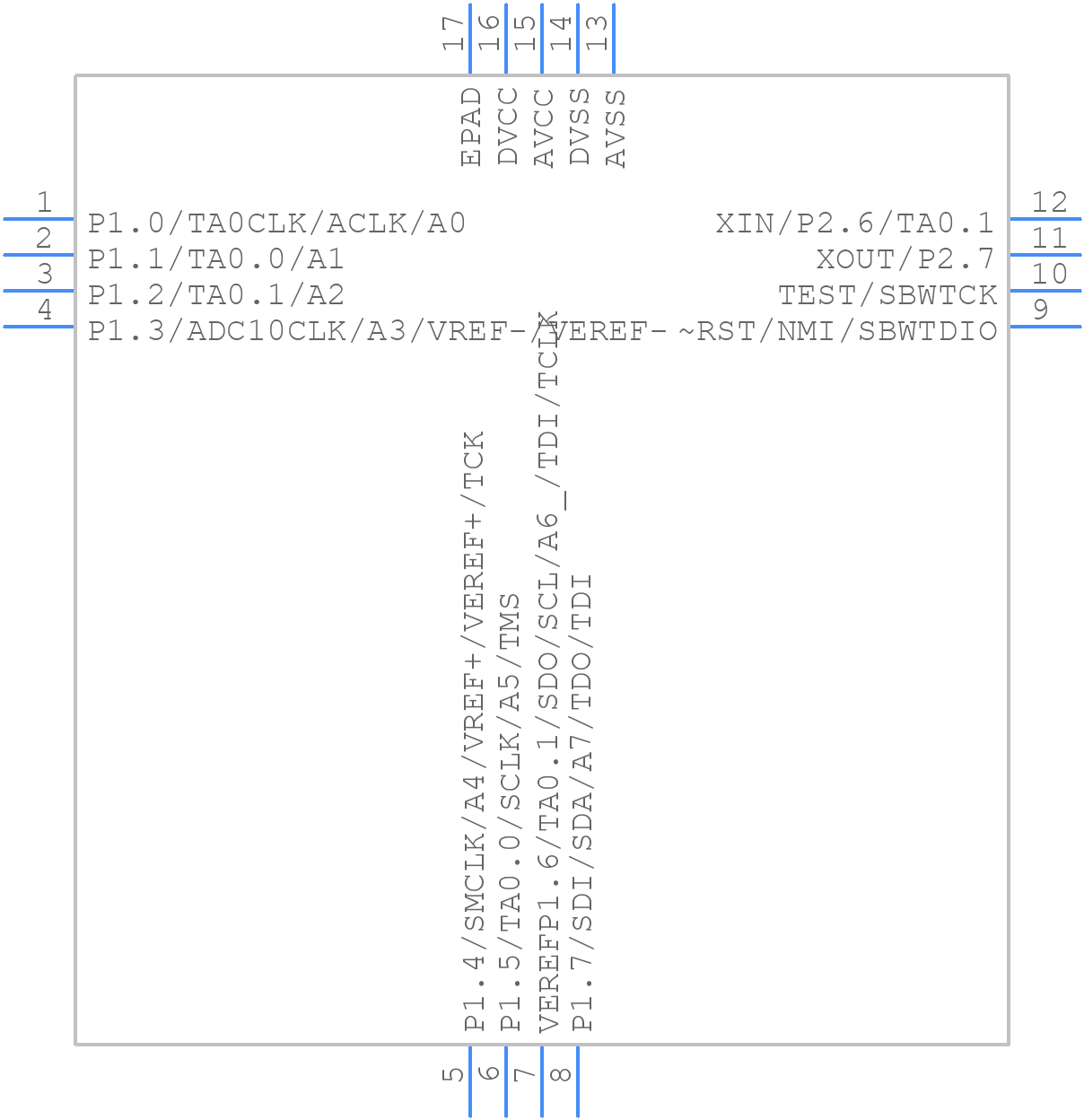

Use the download button to access the MSP430G2432IRSA16T schematic symbol, PCB footprint, and 3D model.
