The maximum clock frequency that can be used with the MSP430G2744IDA38 is 16 MHz, which is the maximum frequency of the internal digitally controlled oscillator (DCO). However, the device can also be clocked using an external clock source, in which case the maximum frequency depends on the specific clock source used.
To configure the MSP430G2744IDA38 to use an external crystal oscillator, you need to connect the crystal to the XIN and XOUT pins, and then configure the UCS (Universal Clock System) module to use the external crystal oscillator as the clock source. This can be done by setting the UCSCTL6 register to select the external crystal oscillator as the clock source, and then configuring the UCSCTL7 register to set the crystal frequency and other parameters.
The power consumption of the MSP430G2744IDA38 in low-power mode (LPM3) is typically around 1.1 μA/MHz, depending on the specific configuration and operating conditions. In LPM4 mode, the power consumption is typically around 0.3 μA/MHz. These values are based on the typical current consumption values specified in the datasheet, and may vary depending on the specific application and operating conditions.
Yes, the MSP430G2744IDA38 can be used with a 3.3V power supply. The device has a wide operating voltage range of 1.8V to 3.6V, making it suitable for use with a 3.3V power supply. However, it's important to ensure that the power supply is stable and within the specified operating voltage range to ensure proper device operation.
The MSP430G2744IDA38 can be programmed using the Texas Instruments Code Composer Studio (CCS) integrated development environment (IDE), which provides a comprehensive set of tools for developing, debugging, and programming MSP430 devices. The device can also be programmed using other third-party development tools and programming languages, such as IAR Embedded Workbench and Keil µVision.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSP430G2744IDA38 Overview

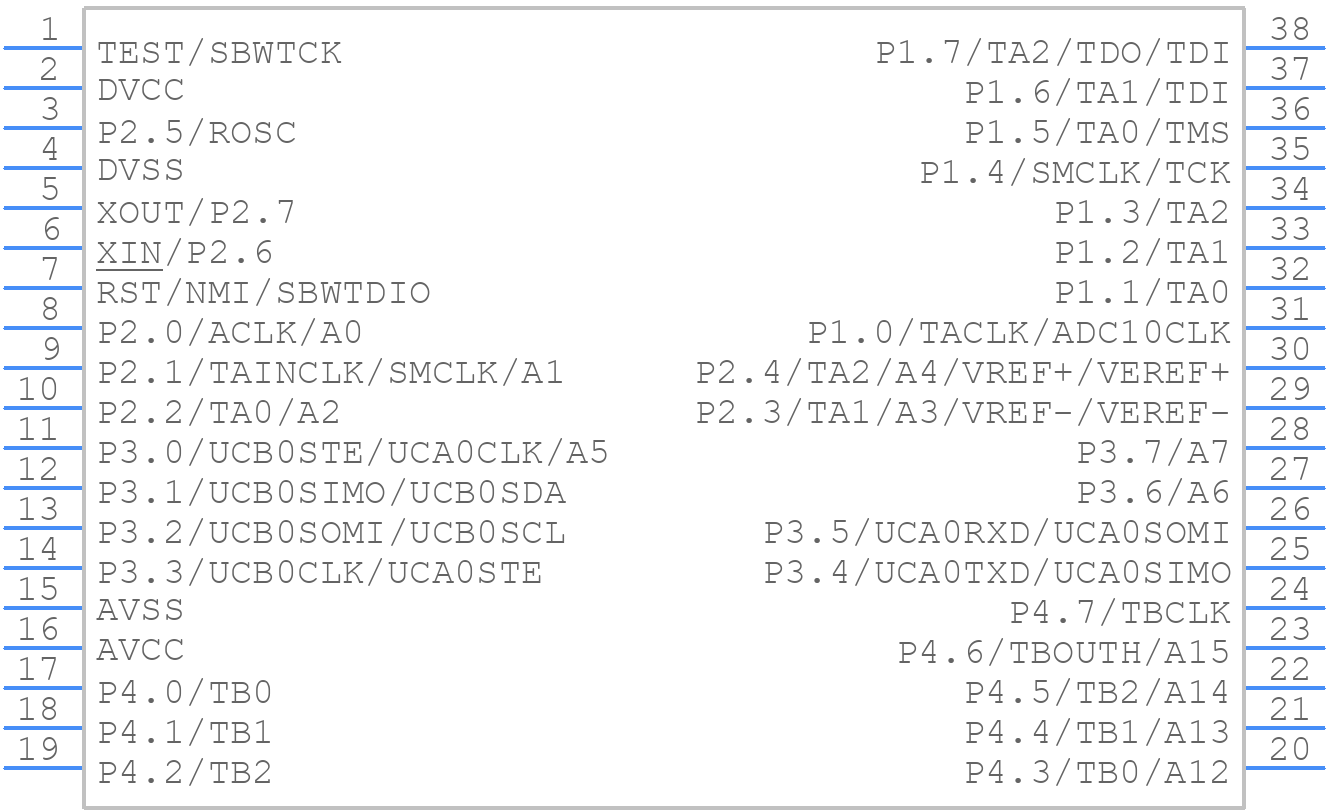

Use the download button to access the MSP430G2744IDA38 schematic symbol, PCB footprint, and 3D model.
