Texas Instruments provides a recommended PCB layout guide in the MSP430 Microcontroller Family Architecture User's Guide (SLAU144). It's essential to follow this guide to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI).
The MSPM0G1107TRHBR requires a 32.768 kHz crystal oscillator. When selecting a crystal, consider factors such as frequency tolerance, load capacitance, and equivalent series resistance (ESR). Texas Instruments recommends using a crystal with a frequency tolerance of ±20 ppm and a load capacitance of 12.5 pF.
The MSPM0G1107TRHBR has an operating temperature range of -40°C to 85°C. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures. Always check the datasheet for specific temperature-related specifications and recommendations.
A reliable POR circuit is crucial for ensuring the microcontroller resets correctly during power-up. Texas Instruments recommends using an external POR circuit with a voltage supervisor, such as the TLV7031, to provide a clean and reliable reset signal to the MSPM0G1107TRHBR.
To ensure EMC compliance, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, consider using a ferrite bead or common-mode choke to reduce electromagnetic radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSPM0G1107TRHBR Overview

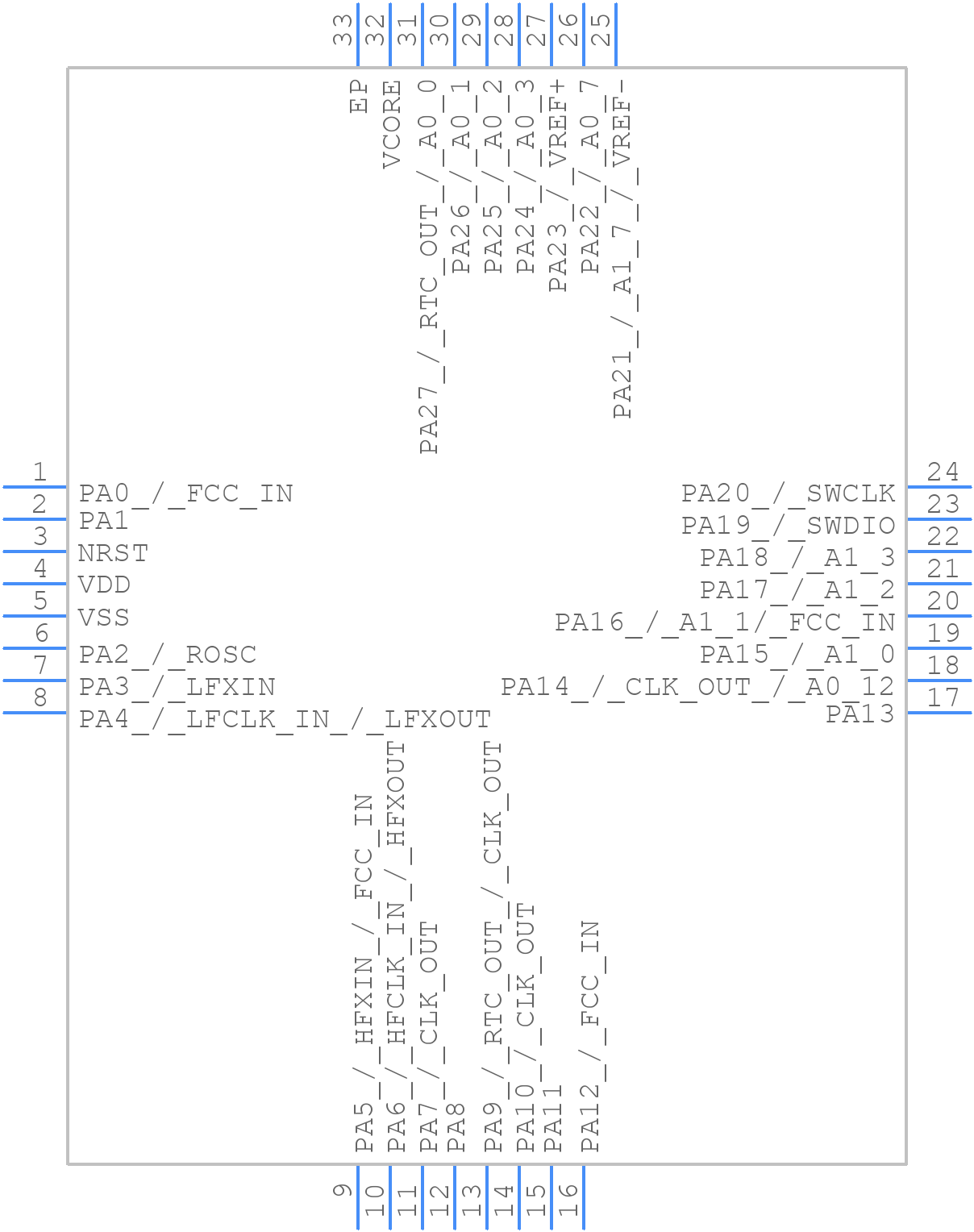

Use the download button to access the MSPM0G1107TRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSPM0,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
