The recommended operating temperature range for MSPM0G1507SPTR is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
To configure the clock system for optimal performance, you need to select the appropriate clock source, configure the clock divider, and enable the desired clock domains. Refer to the MSP430x0Gxx Family User's Guide (SLAU367) for detailed information on clock system configuration.
The maximum current consumption of MSPM0G1507SPTR depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the typical current consumption is around 2.1 mA/MHz at 1.8V and 16 MHz. However, this value can increase up to 10 mA or more depending on the specific application and usage.
MSPM0G1507SPTR offers several low-power modes, including LPM0, LPM1, LPM2, LPM3, and LPM4. To implement these modes, you need to configure the power mode control registers, disable unnecessary peripherals, and adjust the clock frequency. Refer to the MSP430x0Gxx Family User's Guide (SLAU367) for detailed information on low-power modes.
When designing a PCB with MSPM0G1507SPTR, it's essential to consider factors such as decoupling capacitor placement, signal integrity, and noise reduction. Ensure that the PCB layout follows the recommended guidelines in the datasheet and the Texas Instruments MSP430 Microcontroller PCB Design Guidelines (SLAA379) document.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSPM0G1507SPTR Overview

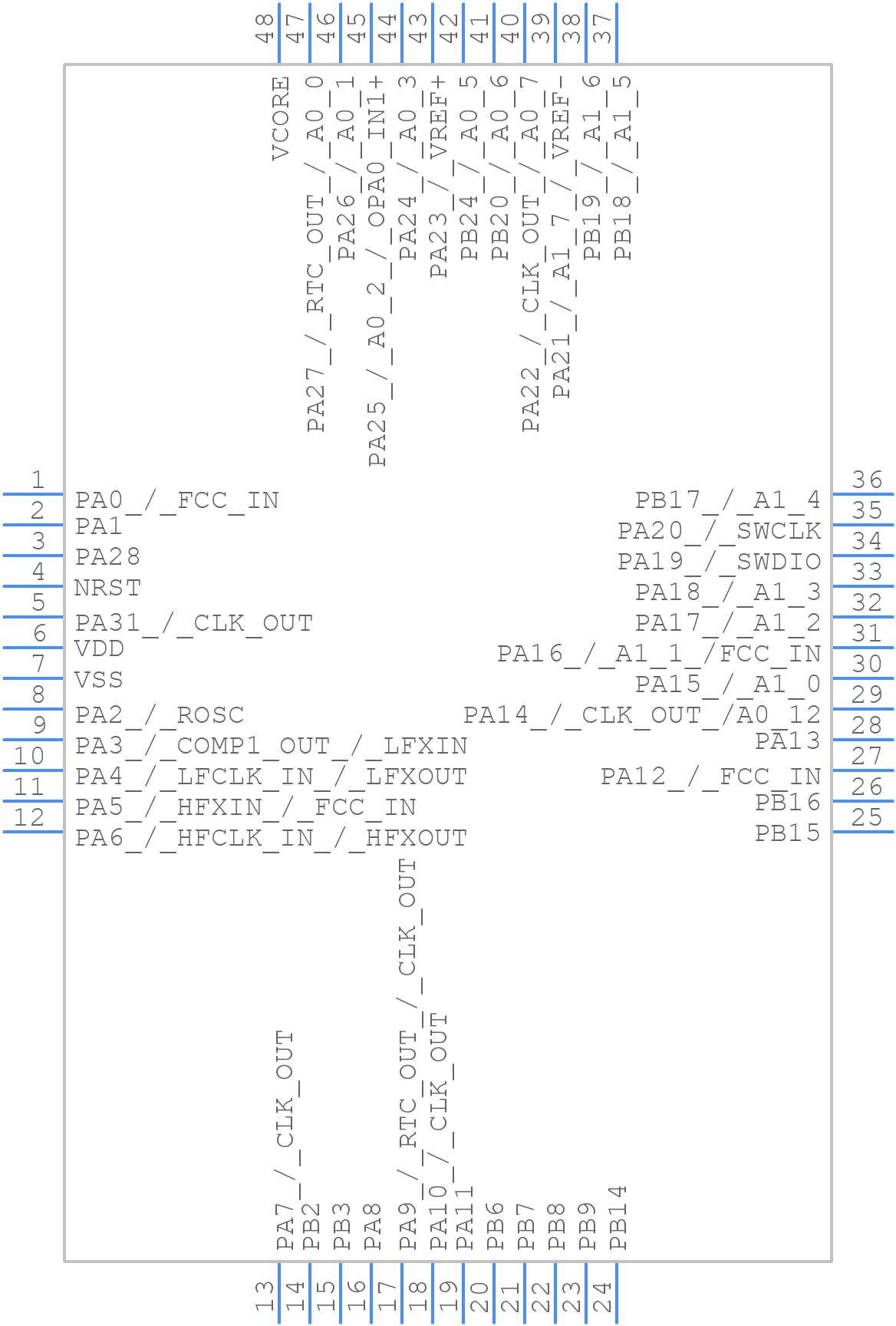

Use the download button to access the MSPM0G1507SPTR schematic symbol, PCB footprint, and 3D model.
