Description:• Core
– Arm® 32-bit Cortex®-M0+ CPU with memory
protection unit, frequency up to 80 MHz
• Operating characteristics
– Extended temperature: –40°C up to 125°C
– Wide supply voltage range: 1.62 V to 3.6 V
• Memories
– Up to 128KB of flash memory with error
correction code (ECC)
– Up to 32KB of SRAM with hardware parity
• High-performance analog peripherals
– Two simultaneous sampling 12-bit 4-Msps
analog-to-digital converters (ADCs) with up to
17 external channels
• 14-bit effective resolution
Texas Instruments provides a recommended PCB layout in the MSP430 Microcontroller Family User's Guide (SLAU144). It's essential to follow the guidelines for decoupling, signal routing, and power supply design to ensure optimal performance and minimize noise.
The MSPM0G3507SPTR can operate with a variety of crystal oscillators. When selecting a crystal, consider factors such as frequency tolerance, load capacitance, and ESR. Texas Instruments provides a Crystal Oscillator and Clock System (SLAA322) application report to help with crystal selection and design.
The MSPM0G3507SPTR has several power-saving modes, including LPM0, LPM1, LPM2, LPM3, and LPM4. Each mode offers varying levels of power reduction. To use them effectively, understand the trade-offs between power consumption and wake-up time. The MSP430 Family Power Management Module (PMM) User's Guide (SLAU144) provides detailed information on power-saving modes and how to implement them.
To implement a reliable and efficient USB interface, follow the guidelines in the MSP430 USB Developer's Package (SLAU208). This document provides information on USB protocol, device configuration, and firmware implementation. Additionally, use the MSP430 USB API (Application Programming Interface) to simplify USB development.
When designing a system with the MSPM0G3507SPTR, consider factors such as power supply design, clock system design, and electromagnetic compatibility (EMC). Ensure that your design meets the requirements for voltage, current, and temperature. Follow the guidelines in the MSP430 Hardware Design Guide (SLAU185) and the MSP430 EMC and System Design Guide (SLAU199) to ensure a robust and reliable system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSPM0G3507SPTR Overview

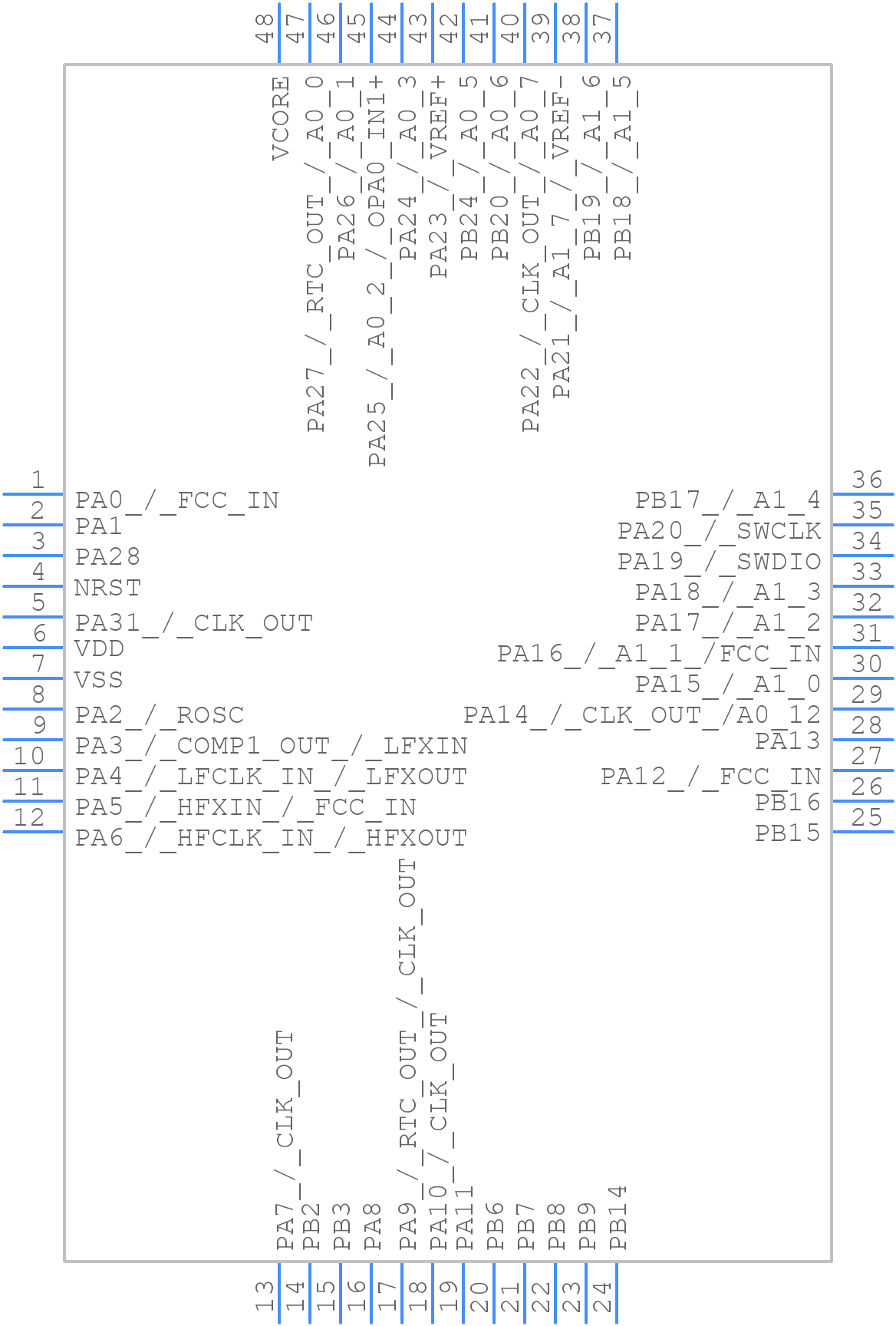

Use the download button to access the MSPM0G3507SPTR schematic symbol, PCB footprint, and 3D model.
