Texas Instruments provides a recommended PCB layout in the MSP430 Microcontroller Family User's Guide (SLAU144). It's essential to follow the guidelines for decoupling, signal routing, and power supply design to ensure optimal performance and minimize noise.
The MSPM0L1105TDYYR can operate with a variety of crystal oscillators. When selecting a crystal, consider factors such as frequency tolerance, load capacitance, and ESR. Texas Instruments provides a Crystal Oscillator and Clock System (SLAA322) application report to help with crystal selection and design.
The MSPM0L1105TDYYR has several power-saving modes, including LPM0, LPM1, LPM2, LPM3, and LPM4. Each mode offers varying levels of power reduction. To use them effectively, understand the trade-offs between power consumption and wake-up time, and implement power-saving techniques such as reducing clock frequency, disabling peripherals, and using interrupts to wake up the device.
To implement a reliable and efficient UART communication protocol, follow best practices such as using a consistent baud rate, configuring the UART module correctly, and implementing error handling mechanisms like checksums or CRC. Additionally, consider using a UART library or driver provided by Texas Instruments or a third-party vendor.
When designing a power supply for the MSPM0L1105TDYYR, consider factors such as voltage regulation, noise reduction, and power sequencing. Use a low-dropout regulator (LDO) or a switching regulator with a low quiescent current to minimize power consumption. Ensure the power supply can handle the device's peak current requirements and provide adequate decoupling and filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSPM0L1105TDYYR Overview

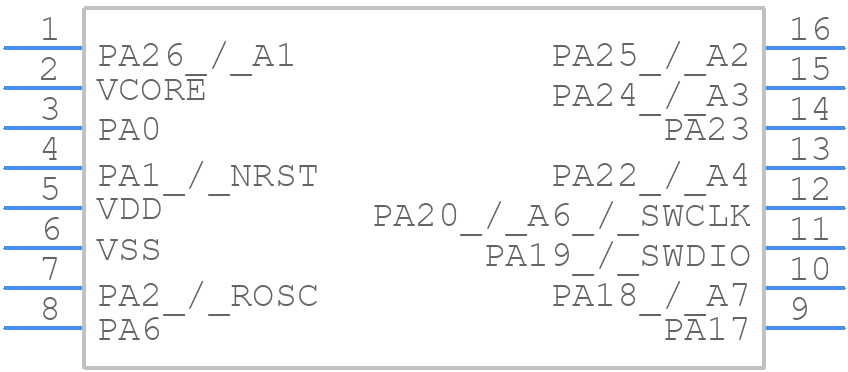

Use the download button to access the MSPM0L1105TDYYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSPM0,
or try a keyword search, such as Microcontrollers
