Texas Instruments provides a recommended PCB layout guide in the MSP430 Microcontroller Family User's Guide (SLAU144). It's essential to follow this guide to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI).
The MSPM0L1304SDYYR requires a 32.768 kHz crystal oscillator. When selecting a crystal, consider factors such as frequency tolerance, load capacitance, and equivalent series resistance (ESR). Texas Instruments recommends using a crystal with a frequency tolerance of ±20 ppm and a load capacitance of 12.5 pF.
The MSPM0L1304SDYYR has an operating temperature range of -40°C to 85°C. However, the device can be operated at temperatures up to 105°C with reduced performance and reliability. It's essential to consider the operating temperature range when designing your application.
A reliable POR circuit is crucial for ensuring the microcontroller resets correctly during power-up. Texas Instruments recommends using an external POR circuit with a voltage supervisor, such as the TLV7031, to provide a clean reset signal to the MSPM0L1304SDYYR.
To ensure EMC compliance, follow proper PCB layout and design guidelines, such as keeping signal traces short, using ground planes, and minimizing loop areas. Additionally, consider using shielding, filtering, and decoupling capacitors to reduce electromagnetic radiation and susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSPM0L1304SDYYR Overview

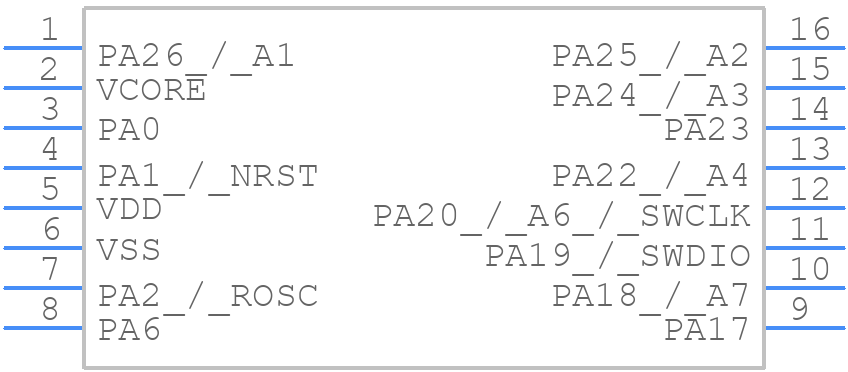

Use the download button to access the MSPM0L1304SDYYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSPM0,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
