MSPM0L1304TRHBR - Texas Instruments

Description: ARM Microcontrollers - MCU 32-MHz Arm Cortex -M 0+ MCU with 16-KB flARM® Cortex®-M0+ - Microcontroller IC 32-Bit 32MHz 16KB (16K x 8) FLASH 32-VQFN (5x5)

Download MSPM0L1304TRHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

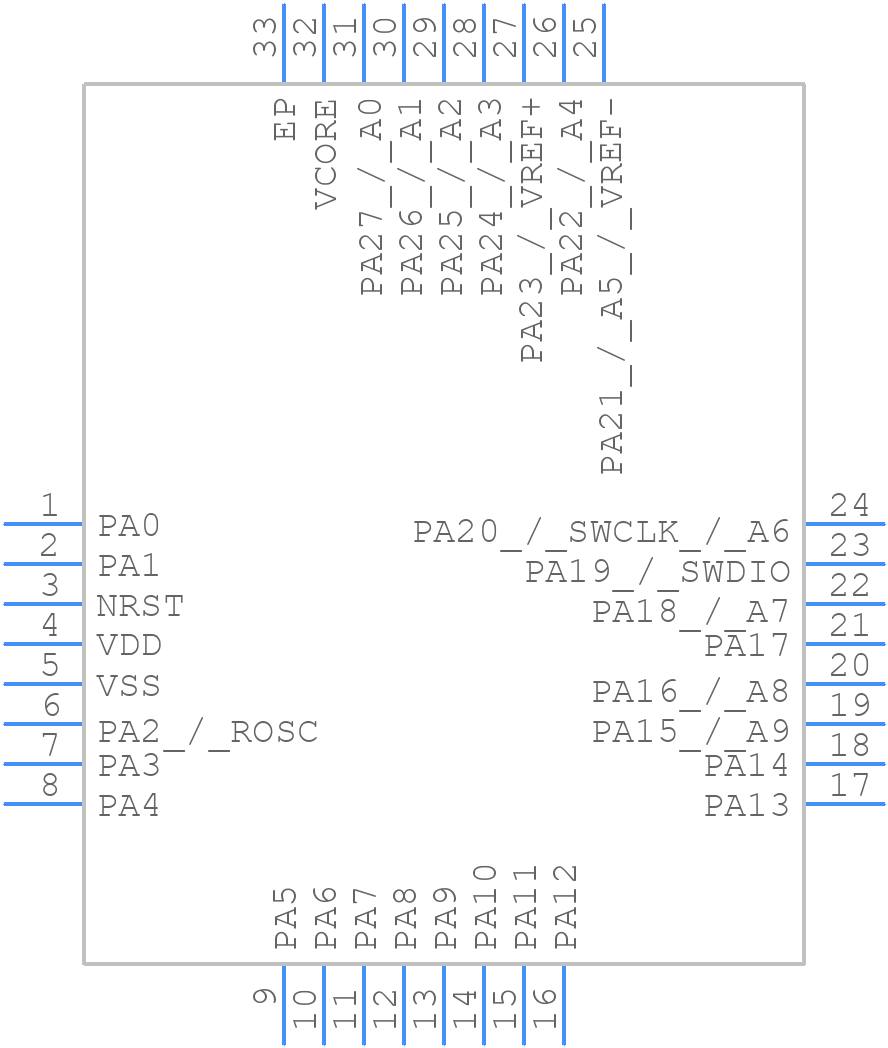

Symbol
MSPM0L1304TRHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
MSPM0L1304TRHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN
click to zoom
3D Models
MSPM0L1304TRHBR - Texas Instruments - 3D model - Quad Flat No-Lead - VQFN
click to zoom

MSPM0L1304TRHBR Details

  • Manufacturer Part Number:

    MSPM0L1304TRHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    CORTEX-M0

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    2

  • Number of DMA Channels:

    3

  • Number of I/O Lines:

    28

  • Number of Serial I/Os:

    2

  • Number of Terminals:

    32

  • Number of Timers:

    4

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    2048

  • ROM (words):

    16384

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MSPM0L1304TRHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the MSP430 Microcontroller Family User's Guide (SLAU144) and the MSPM0L1xxx Device Errata (SLAZ534). It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency signals.
  • The MSPM0L1304TRHBR has an internal POR and BOR circuitry. To handle these resets, you can use the Power-On Reset and Brown-Out Detector (PORBO) module. You can configure the PORBO module to generate an interrupt or reset the device when a power-on or brown-out event occurs. Refer to the MSPM0L1xxx Family User's Guide (SLAU144) for more information.
  • The maximum clock frequency for the MSPM0L1304TRHBR is 12 MHz. However, the device can operate at frequencies up to 16 MHz with some limitations. Refer to the MSPM0L1xxx Device Errata (SLAZ534) for more information on clock frequency limitations.
  • The MSPM0L1304TRHBR has a built-in temperature sensor that can be used to measure the device temperature. To use the temperature sensor, you need to configure the ADC12_B module to read the temperature sensor output. Refer to the MSPM0L1xxx Family User's Guide (SLAU144) for more information on using the temperature sensor.
  • The recommended method for programming the MSPM0L1304TRHBR is using the Spy-Bi-Wire (SBW) interface with a tool like the Texas Instruments Code Composer Studio (CCS) or the MSP-FET430UIF JTAG debugger. You can also use the UART or I2C interfaces for programming, but SBW is the most commonly used method.
