Texas Instruments provides a recommended PCB layout in the MSP430 Microcontroller Family User's Guide (SLAU144) and the MSPM0L1xxx Device Errata (SLAZ534). It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency signals.
The MSPM0L1306TRGER requires a crystal oscillator with a frequency range of 32.768 kHz to 16 MHz. When selecting a crystal, consider factors such as frequency tolerance, load capacitance, and ESR (Equivalent Series Resistance). Texas Instruments provides a list of recommended crystals in the MSP430 Microcontroller Family User's Guide (SLAU144).
The MSPM0L1306TRGER has an operating temperature range of -40°C to 85°C. However, the device can be operated at temperatures up to 105°C with reduced performance and reliability. It's essential to consider the operating temperature range when designing your system.
A reliable POR circuit is crucial for ensuring the microcontroller starts up correctly. Texas Instruments provides a recommended POR circuit in the MSP430 Microcontroller Family User's Guide (SLAU144). The circuit should be designed to handle power supply ramp-up times, voltage dips, and noise.
To minimize EMI and ensure EMC, follow proper PCB layout and design guidelines, such as keeping signal traces short, using ground planes, and avoiding parallel signal traces. Additionally, consider using shielding, filtering, and decoupling capacitors to reduce emissions and improve immunity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSPM0L1306TRGER Overview

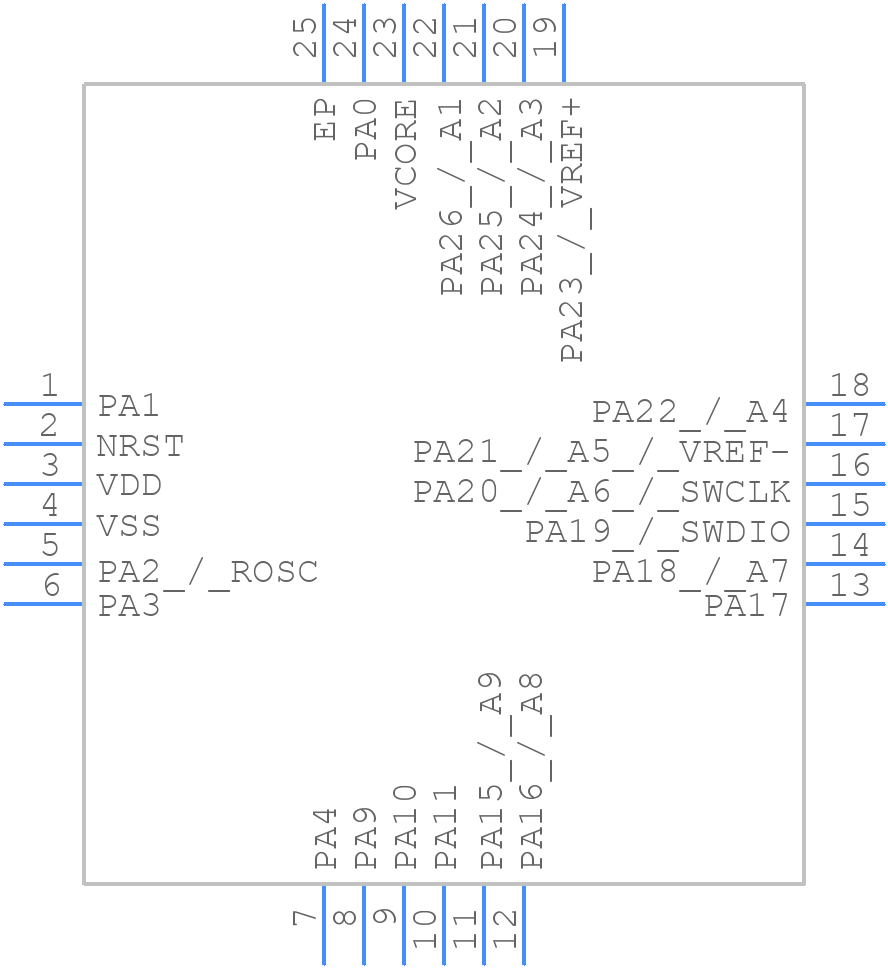

Use the download button to access the MSPM0L1306TRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSPM0,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
