MSWA-2-20+ - Mini-Circuits

Description: RF Switch ICs Absorptive SPDT, SMT Solid State Switch, DC - 2000 MHz, 50 ohms

Download MSWA-2-20+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

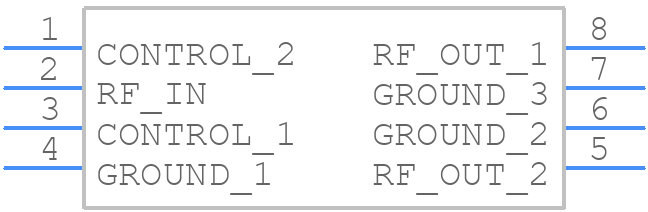

Symbol
MSWA-2-20+ - Mini-Circuits - PCB symbol
click to zoom

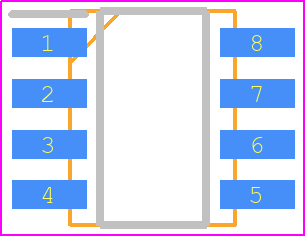

PCB Footprints
MSWA-2-20+ - Mini-Circuits PCB footprint - Small Outline Packages - Small Outline Packages - MSWA-2-20+
click to zoom
3D Models
MSWA-2-20+ - Mini-Circuits - 3D model - Small Outline Packages - MSWA-2-20+
click to zoom

MSWA-2-20+ Details

  • Manufacturer Part Number:

    MSWA-2-20+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.9

  • 1dB Compression Point:

    29 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    1.5 dB

  • Isolation-Min:

    25 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Port Termination:

    ABSORPTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.4

MSWA-2-20+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The MSWA-2-20+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their application note AN-60-012.
  • The maximum power handling of the MSWA-2-20+ is 1W. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to maintain the device's reliability and performance.
  • The MSWA-2-20+ is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, consider using a heat sink or a thermally enhanced package.
  • Common issues with the MSWA-2-20+ include poor return loss, high insertion loss, or oscillations. To troubleshoot, check the PCB layout, impedance matching, and power handling. Ensure that the device is properly soldered and that there are no signs of physical damage. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSWA-2-20+ Overview

Use the download button to access the MSWA-2-20+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSWA-, or try a keyword search, such as RF/Microwave Switches

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
