MT25QU02GCBB8E12-0AUT - Micron

Description: IC FLSH 2GBIT SPI 166MHZ 24TPBGA

Download MT25QU02GCBB8E12-0AUT Model

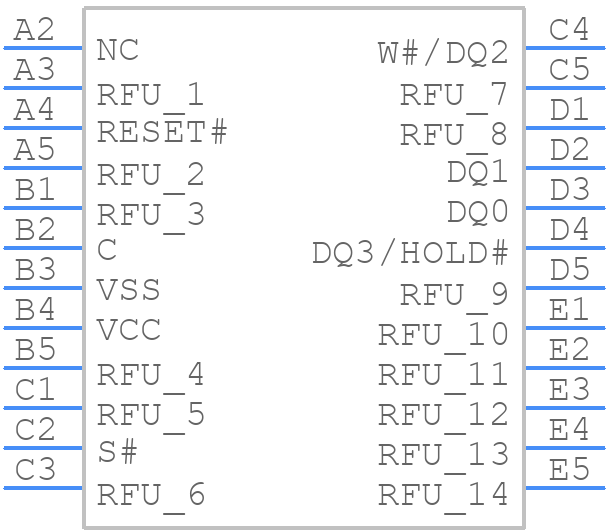

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MT25QU02GCBB8E12-0AUT - Micron PCB footprint - BGA - BGA - 24-Ball T-PBGA (5 x 5 ball grid array)
click to zoom
3D Models
MT25QU02GCBB8E12-0AUT - Micron  - 3D model - BGA - 24-Ball T-PBGA (5 x 5 ball grid array)
click to zoom

MT25QU02GCBB8E12-0AUT Details

  • Manufacturer Part Number:

    MT25QU02GCBB8E12-0AUT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PBGA-24

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Micron Technology Inc

  • YTEOL:

    6.75

  • Clock Frequency-Max (fCLK):

    166 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    1.8 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00013 A

  • Supply Current-Max:

    0.094 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MT25QU02GCBB8E12-0AUT Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MT25QU02GCBB8E12-0AUT is -40°C to 85°C.
  • The device requires a power-up sequence of VCC first, then VPP, and a power-down sequence of VPP first, then VCC. This ensures proper device operation and prevents latch-up.
  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Route the clock and data lines as differential pairs, and keep them away from noisy signals.
  • Use a clock buffer or a clock generator to ensure a clean and stable clock signal. For clock domain crossing, use a synchronizer or a FIFO to handle the clock domain transition.
  • The device's latency is typically around 100-150 ns. This latency can affect system performance, especially in high-speed applications. Consider using a cache or a buffer to mitigate the impact of latency.
