MT29F4G01ABAFD12-AAT:F - Micron

Description: Flash Memory, SLC NAND, 4 Gbit, 4G x 1bit, Serial, TBGA, 24 Pins , 2.7V ~ 3.6V , -40°C ~ 105°C (TC)

Download MT29F4G01ABAFD12-AAT:F Model

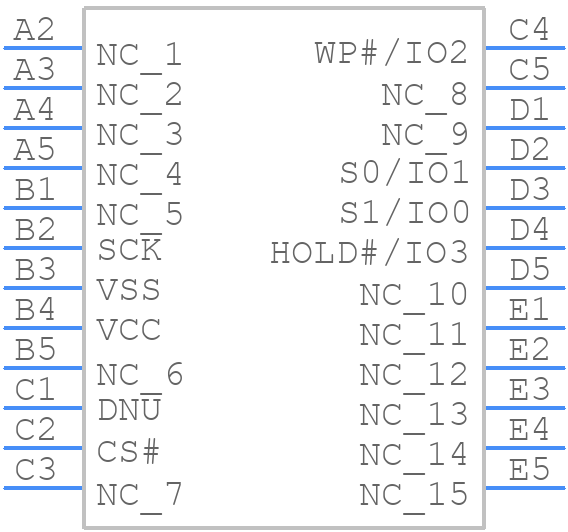

Schematic
