Part Image

MT35XU02GCBA1G12-0AAT - Micron

Description: NOR Flash SERIAL NOR SLC 256MX8 TFBGA QDP

Download MT35XU02GCBA1G12-0AAT Model

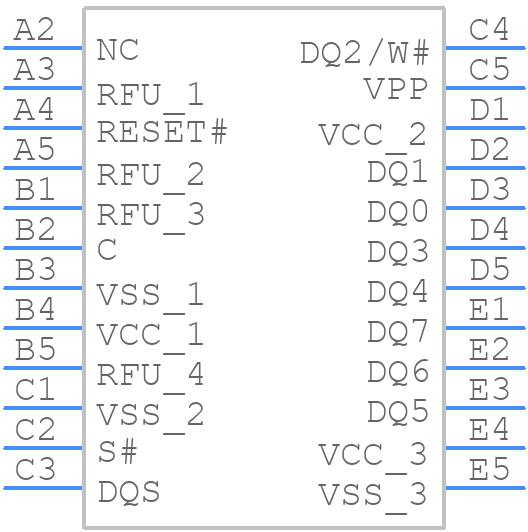

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MT35XU02GCBA1G12-0AAT - Micron PCB footprint - BGA - BGA - MT35XU02GCBA1G12-0AAT
click to zoom
3D Models
MT35XU02GCBA1G12-0AAT - Micron  - 3D model - BGA - MT35XU02GCBA1G12-0AAT
click to zoom

MT35XU02GCBA1G12-0AAT Details

  • Manufacturer Part Number:

    MT35XU02GCBA1G12-0AAT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    TBGA-24

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Micron Technology Inc

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    166 MHz

  • JESD-30 Code:

    R-PBGA-B24

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    2147483648 words

  • Number of Words Code:

    2000000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2GX1

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    1.8 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

MT35XU02GCBA1G12-0AAT Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MT35XU02GCBA1G12-0AAT is 0°C to 95°C.
  • To ensure signal integrity, it is recommended to use a signal integrity analysis tool to simulate the signal behavior and optimize the PCB design. Additionally, following the JEDEC specifications for DDR4 SDRAM and using a well-designed PCB with proper termination and routing can help ensure signal integrity.
  • The recommended refresh rate for the MT35XU02GCBA1G12-0AAT is 2x refresh per second, which is a standard refresh rate for DDR4 SDRAM.
  • The MT35XU02GCBA1G12-0AAT is designed to operate at a voltage supply of 1.2V, and it is not recommended to use it with a different voltage supply. Using a different voltage supply may affect the performance and reliability of the device.
  • The MT35XU02GCBA1G12-0AAT has built-in error correction mechanisms, such as ECC (Error-Correcting Code) and CRC (Cyclic Redundancy Check). In addition, the system designer should implement error handling and retry mechanisms in the system design to handle errors and retries.
