Part Image

MT40A256M16GE-075E:B - Micron

Description: DRAM DDR4 4G 256MX16 FBGA

Download MT40A256M16GE-075E:B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

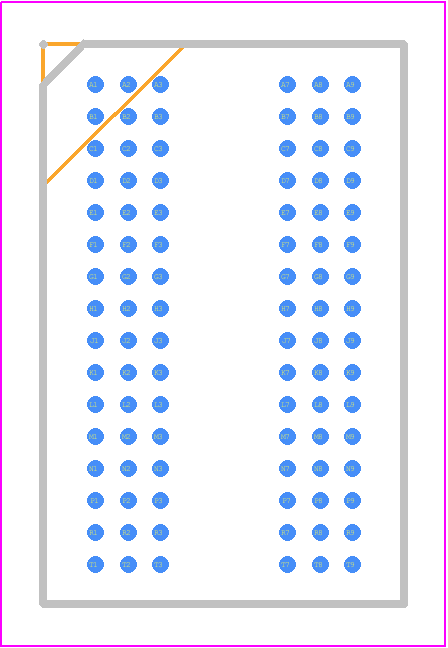

MT40A256M16GE-075E:B - Micron PCB footprint - BGA - BGA - 96-Ball FBGA – x16 "GE"
click to zoom
3D Models
MT40A256M16GE-075E:B - Micron  - 3D model - BGA - 96-Ball FBGA – x16 "GE"
click to zoom

MT40A256M16GE-075E:B Details

  • Manufacturer Part Number:

    MT40A256M16GE-075E:B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TFBGA,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.36

  • Manufacturer:

    Micron Technology Inc

  • YTEOL:

    0

  • Access Mode:

    MULTI BANK PAGE BURST

  • Additional Feature:

    AUTO/SELF REFRESH

  • JESD-30 Code:

    R-PBGA-B96

  • Length:

    14 mm

  • Memory Density:

    4294967296 bit

  • Memory IC Type:

    DDR4 DRAM

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    96

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    256MX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Refresh Cycles:

    8192

  • Seated Height-Max:

    1.2 mm

  • Self Refresh:

    YES

  • Supply Voltage-Max (Vsup):

    1.26 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    9 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MT40A256M16GE-075E:B Overview

Use the download button to access the MT40A256M16GE-075E:B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MT40A, or try a keyword search, such as DRAMs

Parts related to MT40A256M16GE-075E:B

Showing 0 results

MT40A256M16GE-075E:B Alternates

Showing results

Image Part Number Model
Part Image MT40A256M16GE-075EIT:B Micron Technology Inc

DDR DRAM, 256MX16, CMOS, PBGA96, FBGA-96
