The maximum operating temperature range for the MT40A256M16LY-075:F is 0°C to 85°C.
To ensure signal integrity on the address and command bus, use a controlled impedance PCB design, keep the signal traces short, and use a termination scheme such as ODT (On-Die Termination) or a discrete resistor.
The recommended voltage for the VDD and VDDQ power supplies is 1.2V ± 0.06V.
During self-refresh mode, the DRAM module will automatically handle refresh commands. No external refresh commands are required.
The maximum clock frequency supported by the MT40A256M16LY-075:F is 1600MHz.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MT40A256M16LY-075:F Overview

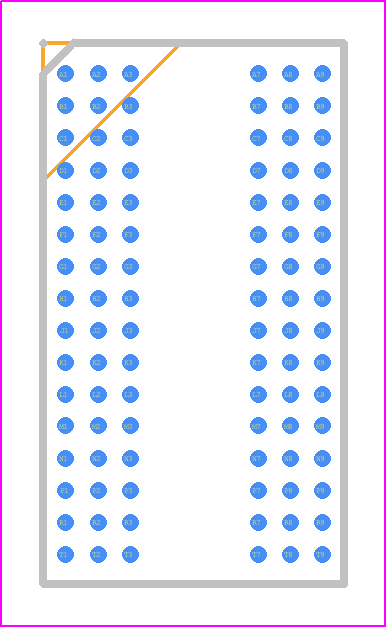

Use the download button to access the MT40A256M16LY-075:F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MT40A,
or try a keyword search, such as DRAMs
