MT40A2G16SKL-062E:B - Micron

MT40A2G16SKL-062E:B Details

• Manufacturer Part Number:

  MT40A2G16SKL-062E:B

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

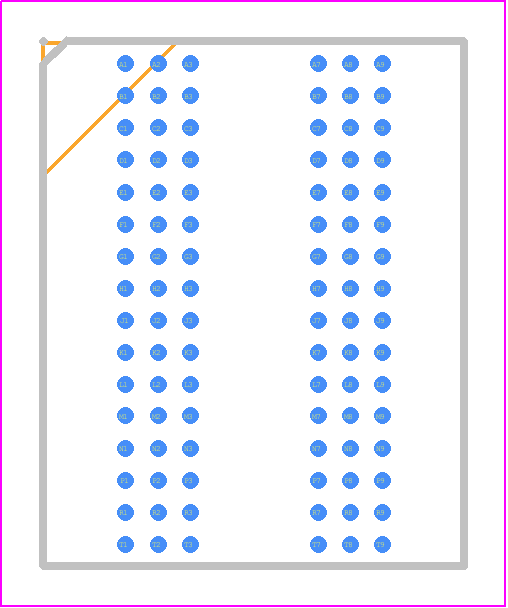

• Package Description:

  FBGA-96

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.36

• Manufacturer:

  Micron Technology Inc

• YTEOL:

  0

• Access Mode:

  SINGLE BANK PAGE BURST

• Clock Frequency-Max (fCLK):

  1600 MHz

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PBGA-B96

• JESD-609 Code:

  e1

• Length:

  13 mm

• Memory Density:

  34359738368 bit

• Memory IC Type:

  DDR4 DRAM

• Memory Width:

  16

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  96

• Number of Words:

  2147483648 words

• Number of Words Code:

  2000000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  95 °C

• Organization:

  2GX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFBGA

• Package Equivalence Code:

  BGA96,9X16,32

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Refresh Cycles:

  8192

• Seated Height-Max:

  1.2 mm

• Self Refresh:

  YES

• Standby Current-Max:

  0.086 A

• Supply Current-Max:

  0.392 mA

• Supply Voltage-Max (Vsup):

  1.26 V

• Supply Voltage-Min (Vsup):

  1.14 V

• Supply Voltage-Nom (Vsup):

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  10.5 mm
