MT46H32M16LFBF-5AAT:C - Micron

MT46H32M16LFBF-5AAT:C Details

• Manufacturer Part Number:

  MT46H32M16LFBF-5AAT:C

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

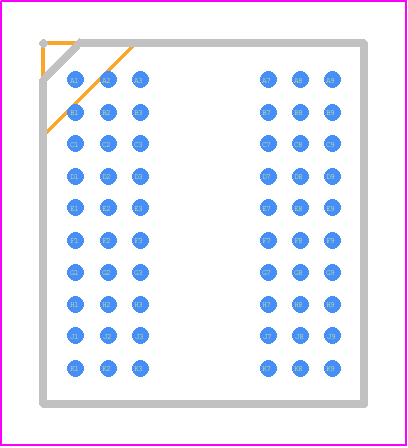

• Part Package Code:

  BGA

• Package Description:

  8 X 9 MM, GREEN, PLASTIC, VFBGA-60

• Pin Count:

  60

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.28

• Manufacturer:

  Micron Technology Inc

• YTEOL:

  4

• Access Mode:

  FOUR BANK PAGE BURST

• Access Time-Max:

  5 ns

• Additional Feature:

  AUTO/SELF REFRESH

• JESD-30 Code:

  R-PBGA-B60

• JESD-609 Code:

  e1

• Length:

  9 mm

• Memory Density:

  536870912 bit

• Memory IC Type:

  DDR1 DRAM

• Memory Width:

  16

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  60

• Number of Words:

  33554432 words

• Number of Words Code:

  32000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  32MX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Self Refresh:

  YES

• Supply Voltage-Max (Vsup):

  1.95 V

• Supply Voltage-Min (Vsup):

  1.7 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn98.5Ag1.0Cu0.5)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  8 mm
