MT48LC16M16A2P-75:D - Micron

MT48LC16M16A2P-75:D Details

• Manufacturer Part Number:

  MT48LC16M16A2P-75:D

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

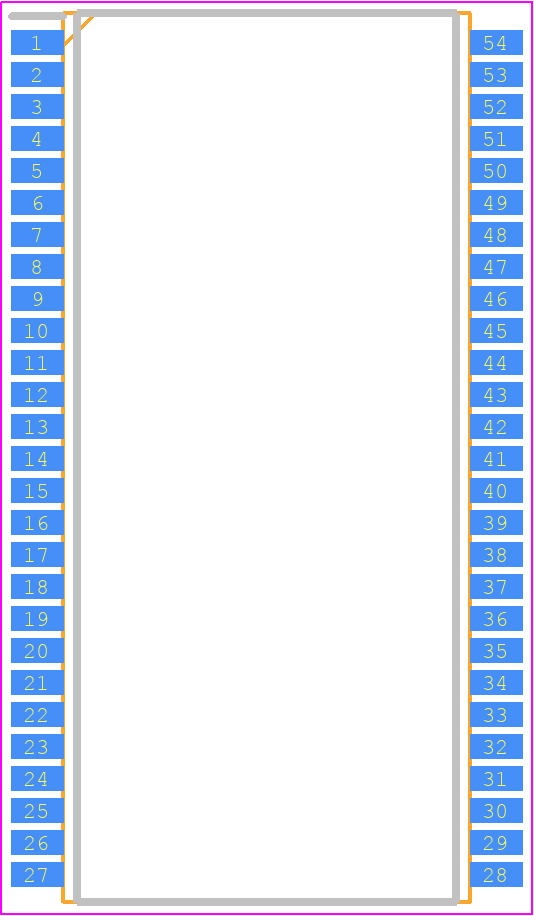

• Part Package Code:

  TSOP2

• Package Description:

  TSOP2-54

• Pin Count:

  54

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.28

• Manufacturer:

  Micron Technology Inc

• YTEOL:

  0

• Access Mode:

  FOUR BANK PAGE BURST

• Access Time-Max:

  5.4 ns

• Additional Feature:

  AUTO/SELF REFRESH

• Clock Frequency-Max (fCLK):

  133 MHz

• I/O Type:

  COMMON

• Interleaved Burst Length:

  1,2,4,8

• JESD-30 Code:

  R-PDSO-G54

• JESD-609 Code:

  e3

• Length:

  22.22 mm

• Memory Density:

  268435460 bit

• Memory IC Type:

  SYNCHRONOUS DRAM

• Memory Width:

  16

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  54

• Number of Words:

  16777216 words

• Number of Words Code:

  16000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  16MX16

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSOP2

• Package Equivalence Code:

  TSOP54,.46,32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Refresh Cycles:

  8192

• Seated Height-Max:

  1.2 mm

• Self Refresh:

  YES

• Sequential Burst Length:

  1,2,4,8,FP

• Standby Current-Max:

  0.002 A

• Supply Current-Max:

  0.125 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  10.16 mm
