MT6691SVP/A - Mediatek

Description: • Programmable Output Voltage Range – 0.27V to 1.4V, 6.25mV/bit (DIE_ID Register 0x03 bit0=1) – 0.3V to 1.3V, 5mV/bit (DIE_ID Register 0x03 bit0=0) • Programmable Slew Rate for Voltage Transitions • 2.5V to 5.5V Input Voltage Range • Steady 2.4MHz Switching Frequency • Best-In-Class Load Transient • Continuous Output Current Capability : 3A • I 2C-Compatible Interface Up to 3.4Mbps • PFM Mode for High Efficiency in Light Load • Quiescent Current in auto PFM/PWM mode – 45µA in normal mode – 36µA

Download MT6691SVP/A Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MT6691SVP/A model

Email notifications will be applied after download.

Send part feedback

Symbol

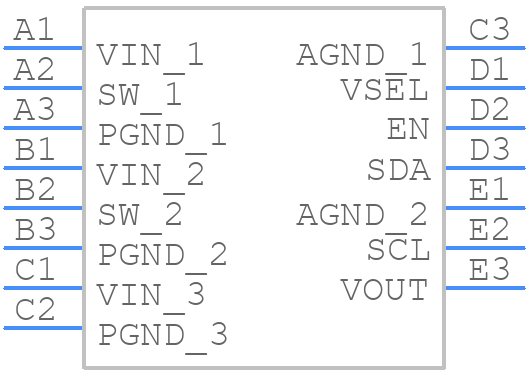

MT6691SVP/A - Mediatek - PCB symbol

PCB Footprints

MT6691SVP/A - Mediatek PCB footprint - BGA - BGA - WL-CSP-15B

3D Models

MT6691SVP/A - Mediatek - 3D model - BGA - WL-CSP-15B

Datasheet Download Datasheet
Stock & Prices Price & Stock for MT6691SVP/A
Part Number MT6691SVP/A
Manufacturer Mediatek
Pin Count 15
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - WL-CSP-15B
Released Date May 4, 2024
Last Modified Date May 4, 2024 12:31 PM UTC
Pinout / Pin List Click Here (Member Only)

MT6691SVP/A Details

Manufacturer Part Number:
MT6691SVP/A
Manufacturer:
MediaTek
