- Part Number MT8880CS1
- Manufacturer Microchip
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - (SO)20-Lead(SOIC) 300mil
- Released Date May 28, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MT8880CS1 Details
-
Manufacturer Part Number:
MT8880CS1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
0.300 INCH, LEAD FREE, MS-013AC, SOIC-20
-
Pin Count:
20
-
Manufacturer Package Code:
SOIC-20
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
3 Weeks
-
Manufacturer:
Microchip Technology Inc
MT8880CS1 Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper device initialization and prevents latch-up.
-
To optimize power consumption, use the device's power-down modes (e.g., standby, sleep), reduce the clock frequency, and minimize the number of active circuits. Additionally, consider using a low-dropout regulator (LDO) to reduce power supply noise.
-
The MT8880CS1 supports clock frequencies up to 100 MHz. However, the actual maximum frequency may vary depending on the specific application, PCB layout, and environmental conditions.
-
To ensure reliable data transmission, use a suitable baud rate, implement flow control (e.g., RTS/CTS), and consider using a UART FIFO to buffer data. Additionally, ensure proper signal termination and use a reliable clock source.
-
Key considerations for PCB layout and design include minimizing signal trace lengths, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, ensure proper signal routing, and consider using a 4-layer PCB to reduce noise and improve signal integrity.
Trust Checks
Community Provided
System Verified
Community Approved
MT8880CS1 Overview

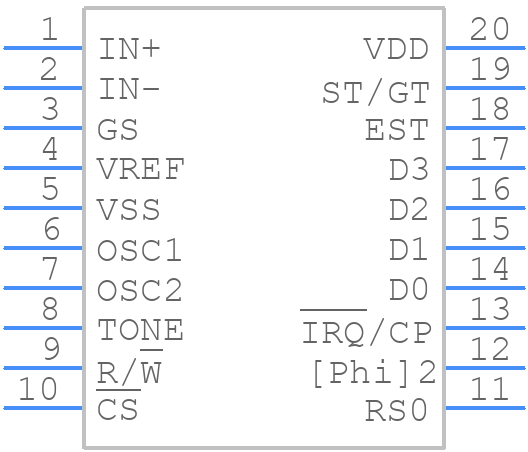

Use the download button to access the MT8880CS1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MT888,
or try a keyword search, such as Telecom Signaling Circuits
