MT9092AP1 footprint, schematic symbol and 3D model by Microsemi Corporation

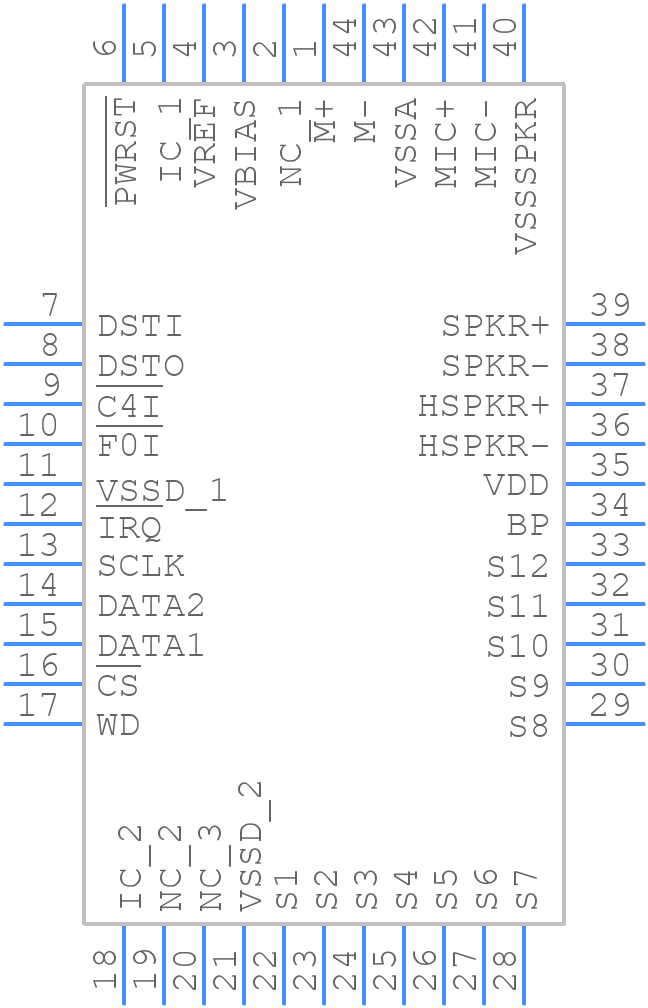

Symbol

click to zoom

PCB Footprints

MT9092AP1 - Microsemi Corporation PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 44 lead PLCC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MT9092AP1
Part Number MT9092AP1
Manufacturer Microsemi Corporation
Pin Count 44
Part Category Integrated Circuit
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - 44 lead PLCC
Released Date Jan 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MT9092AP1 Details

Manufacturer Part Number:
MT9092AP1
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
LPCC
Package Description:
LEAD FREE, PLASTIC, MS-018AC, LCC-44
Pin Count:
44
HTS Code:
8542.39.00.01
Manufacturer:
Microsemi Corporation (now Microchip)
YTEOL:
0
JESD-30 Code:
S-PQCC-J44
JESD-609 Code:
e3
Length:
16.585 mm
Number of Functions:
1
Number of Terminals:
44
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Equivalence Code:
LDCC44,.7SQ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Qualification Status:
Not Qualified
Seated Height-Max:
4.57 mm
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Telecom IC Type:
TELECOM CIRCUIT
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Width:
16.585 mm

MT9092AP1 Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or a ferrite bead to reduce EMI.
Use a heat sink with a thermal resistance of less than 10°C/W to keep the junction temperature below 125°C. Ensure good airflow and avoid blocking the airflow around the device.
Power up the VCC pin first, followed by the VDD pin. Ensure that the VCC pin is stable before applying the VDD voltage. Use a power-up sequence controller or a voltage supervisor to ensure a safe power-up sequence.
Check the JTAG clock frequency and ensure it is within the recommended range. Verify that the JTAG pins are not shorted or open. Use a JTAG debugger or a logic analyzer to capture the JTAG signals and analyze the waveform.
The maximum allowed capacitance on the output pins is 100 pF. Exceeding this value may cause signal integrity issues or affect the device's performance.

Trust Checks

Community Provided

System Verified

Community Approved

MT9092AP1 Overview

Use the download button to access the MT9092AP1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MT909, or try a keyword search, such as Other Telecom ICs
