MTCH102T-I/MU - Microchip

Description: Capacitive Touch Sensors Proximity/Touch Controller, 2 Chan

Download MTCH102T-I/MU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

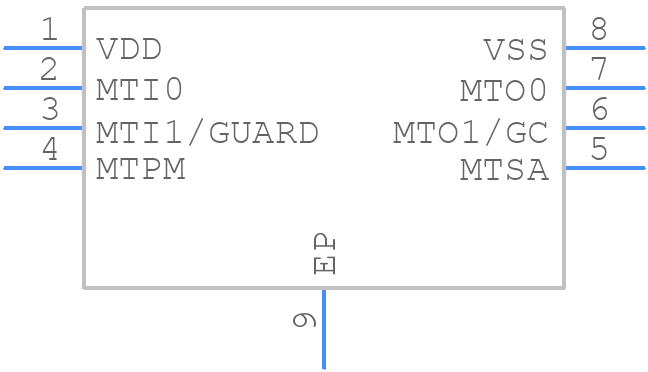

MTCH102T-I/MU - Microchip - PCB symbol
click to zoom
PCB Footprints
MTCH102T-I/MU - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MTCH102T-I/MU
click to zoom
3D Models
MTCH102T-I/MU - Microchip - 3D model - Small Outline No-lead - MTCH102T-I/MU
click to zoom

MTCH102T-I/MU Details

  • Manufacturer Part Number:

    MTCH102T-I/MU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn)

MTCH102T-I/MU Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MTCH102T-I/MU is 1.8V to 5.5V.
  • The MTCH102T-I/MU can be configured for I2C or SPI interface by setting the MODE pin high or low, respectively, during power-up. For I2C, MODE pin should be connected to VDD, and for SPI, it should be connected to GND.
  • The MTCH102T-I/MU supports clock frequencies up to 400 kHz for I2C and 10 MHz for SPI.
  • The interrupt output of the MTCH102T-I/MU is an open-drain output, so it requires an external pull-up resistor to VDD. The interrupt is active-low, meaning it goes low when an interrupt event occurs.
  • The RESET pin is an active-low input that resets the device when pulled low. It can be used to reset the device to its default state.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTCH102T-I/MU Overview

Use the download button to access the MTCH102T-I/MU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTCH1, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
