MTCH105-I/ML - Microchip

Description: Capacitive Touch Sensors Proximity/Touch Controller, 5 Chan

Download MTCH105-I/ML Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

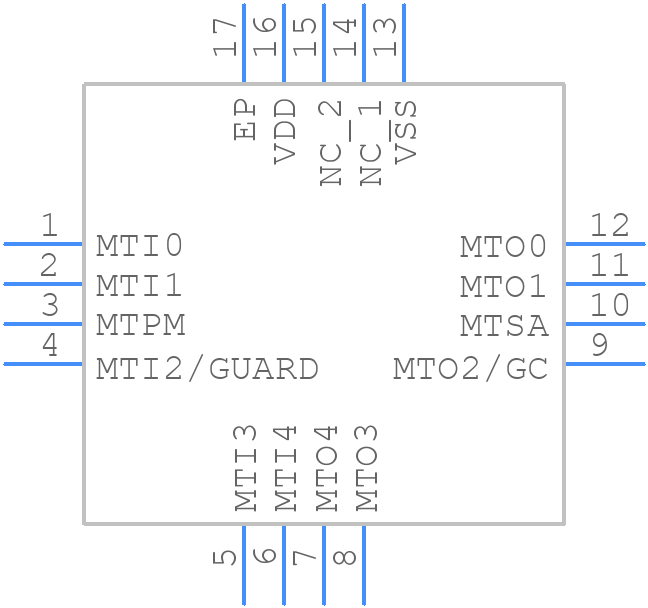

MTCH105-I/ML - Microchip - PCB symbol
click to zoom
PCB Footprints
MTCH105-I/ML - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Plastic Quad Flat, No Lead Package (ML) - 4x4x0.9mm Body [QFN]
click to zoom
3D Models
MTCH105-I/ML - Microchip - 3D model - Quad Flat No-Lead - 16-Lead Plastic Quad Flat, No Lead Package (ML) - 4x4x0.9mm Body [QFN]
click to zoom

MTCH105-I/ML Details

  • Manufacturer Part Number:

    MTCH105-I/ML

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    VQFN-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

MTCH105-I/ML Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for MTCH105-I/ML is 1.8V to 5.5V.
  • The I2C address of the MTCH105-I/ML can be configured by connecting the A0, A1, and A2 pins to VCC or GND. The address is determined by the voltage level on these pins.
  • The maximum frequency of the I2C clock (SCL) for MTCH105-I/ML is 400 kHz.
  • The MTCH105-I/ML can be reset by pulling the RESET pin low for at least 1 ms.
  • The INT pin is an interrupt output that goes low when a touch event is detected. It can be used to wake up a microcontroller from sleep mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTCH105-I/ML Overview

Use the download button to access the MTCH105-I/ML schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTCH1, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
