MTCH1060-E/REB - Microchip

Description: Touch Screen Controllers 6 channel touch controller, GPIO, UART tuning

Download MTCH1060-E/REB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

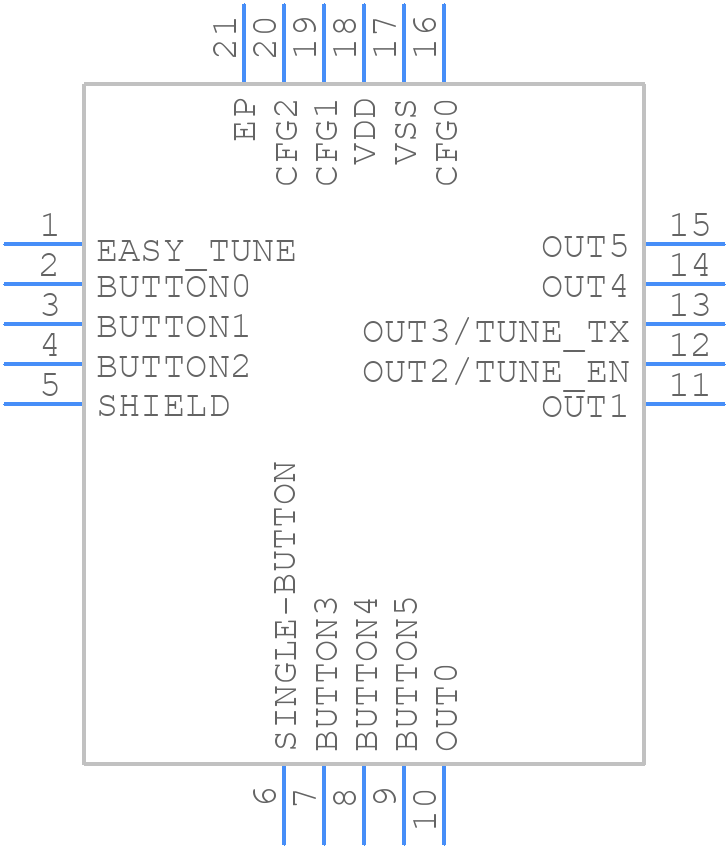

Symbol
MTCH1060-E/REB - Microchip - PCB symbol
click to zoom
PCB Footprints
MTCH1060-E/REB - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead Very Thin Plastic Quad Flat, No Lead Package (REB) - 3x3 mm Body [VQFN
click to zoom
3D Models
MTCH1060-E/REB - Microchip - 3D model - Quad Flat No-Lead - 20-Lead Very Thin Plastic Quad Flat, No Lead Package (REB) - 3x3 mm Body [VQFN
click to zoom

MTCH1060-E/REB Details

  • Manufacturer Part Number:

    MTCH1060-E/REB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    VQFN-20

  • Country Of Origin:

    Philippines, Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CAPACITIVE TOUCH SCREEN CONTROLLERS

MTCH1060-E/REB Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in their application note AN2604, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The MTCH1060-E/REB can be configured for I2C or SPI communication through the use of external resistors and capacitors. Refer to the datasheet section 4.3 for I2C configuration and section 4.4 for SPI configuration. Additionally, Microchip provides example schematics and configuration guides in their application notes.
  • The MTCH1060-E/REB has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Refer to the datasheet section 5.1 for thermal characteristics and guidelines for thermal management.
  • The MTCH1060-E/REB has built-in POR and BOD circuits. To implement POR, connect the POR pin to a capacitor and a resistor to VDD. For BOD, connect the BOD pin to a capacitor and a resistor to VDD. Refer to the datasheet section 4.5 for more information and example circuits.
  • Microchip recommends using 0.1 μF to 1 μF decoupling capacitors between VDD and GND, and 10 nF to 100 nF decoupling capacitors between AVDD and AGND. Refer to the datasheet section 4.2 for more information on power supply decoupling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTCH1060-E/REB Overview

Use the download button to access the MTCH1060-E/REB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTCH1, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
