MTCH6102-I/MV - Microchip

Description: Microchip MTCH6102-I/MV Proximity Sensor Capacitive, 1.8 → 3.6 V 28-Pin UQFN

Download MTCH6102-I/MV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

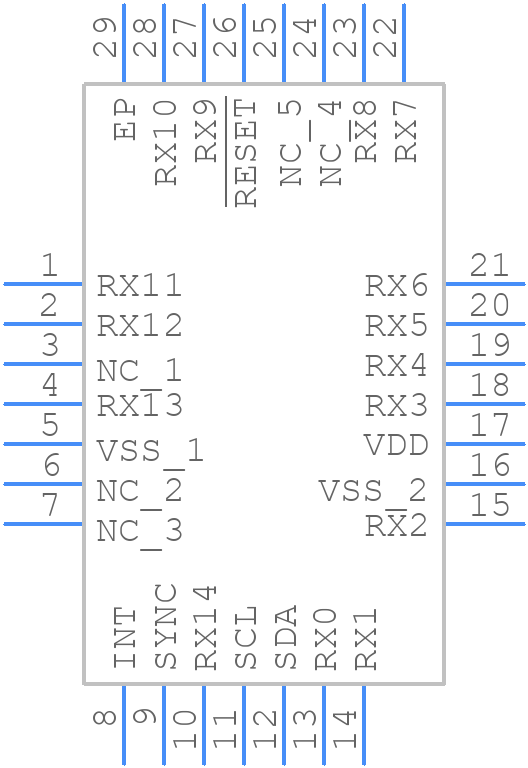

MTCH6102-I/MV - Microchip - PCB symbol
click to zoom
PCB Footprints
MTCH6102-I/MV - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MV 4X4X0.5 UQFN 28 LEAD PUTQFN
click to zoom
3D Models
MTCH6102-I/MV - Microchip - 3D model - Quad Flat No-Lead - MV 4X4X0.5 UQFN 28 LEAD PUTQFN
click to zoom

MTCH6102-I/MV Details

  • Manufacturer Part Number:

    MTCH6102-I/MV

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    UQFN-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CAPACITIVE TOUCH SCREEN CONTROLLERS

MTCH6102-I/MV Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • The MTCH6102-I/MV can be configured for I2C or SPI communication by setting the MODE pin high or low, respectively. For I2C, connect the SCL pin to a clock signal and the SDA pin to a data signal. For SPI, connect the SCK pin to a clock signal, the MOSI pin to a data output, and the MISO pin to a data input.
  • The MTCH6102-I/MV can drive up to 400 pF of capacitive load on the output pins. Exceeding this limit may affect the device's performance and reliability.
  • To ensure EMC, use a shielded enclosure, keep the PCB layout compact, and use a common mode choke or ferrite bead on the power supply lines. Also, ensure that the device is properly decoupled and that the analog and digital sections are separated.
  • The recommended power-up sequence is to apply the analog power supply (VDDA) first, followed by the digital power supply (VDDD). This ensures that the analog circuitry is powered up before the digital circuitry.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTCH6102-I/MV Overview

Use the download button to access the MTCH6102-I/MV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTCH6, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
