MTCH6102-I/SS - Microchip

Description: MICROCHIP - MTCH6102-I/SS - CAPACITIVE TOUCH SENSOR, 15 CH, SSOP-28

Download MTCH6102-I/SS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

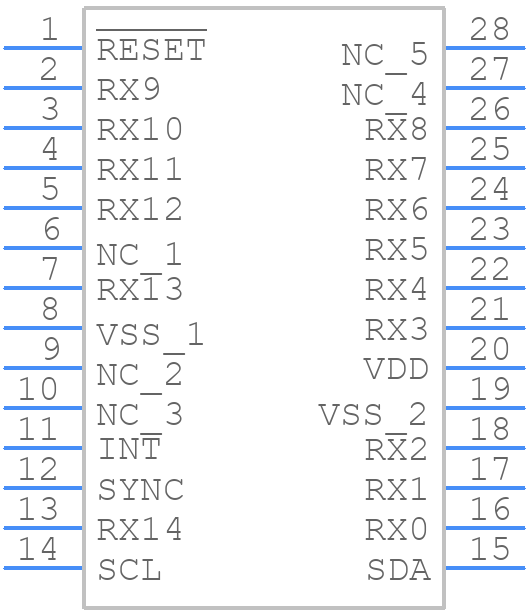

MTCH6102-I/SS - Microchip - PCB symbol
click to zoom
PCB Footprints
MTCH6102-I/SS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]
click to zoom
3D Models
MTCH6102-I/SS - Microchip - 3D model - Small Outline Packages - 28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]
click to zoom

MTCH6102-I/SS Details

  • Manufacturer Part Number:

    MTCH6102-I/SS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    SSOP-28

  • Country Of Origin:

    Philippines, Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    CAPACITIVE TOUCH SCREEN CONTROLLERS

MTCH6102-I/SS Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MTCH6102-I/SS evaluation board user's guide. It's essential to follow the guidelines for proper grounding, decoupling, and signal routing to ensure optimal performance and minimize EMI.
  • The MTCH6102-I/SS can be configured for I2C or SPI communication through the MODE pin. For I2C, connect the MODE pin to VDD, and for SPI, connect it to GND. Additionally, configure the device's registers according to the communication protocol chosen.
  • The maximum capacitive load for the touch sensor inputs is 100 pF. Exceeding this value may affect the device's performance and accuracy. It's essential to consider the capacitive load of the touch sensor, PCB traces, and other components when designing the system.
  • Calibration involves adjusting the sensor's sensitivity and threshold settings. Microchip provides a calibration procedure in the MTCH6102-I/SS datasheet, which involves measuring the sensor's output and adjusting the settings accordingly. It's recommended to perform calibration during the manufacturing process or during system initialization.
  • The power consumption of the MTCH6102-I/SS varies depending on the operating mode. In active mode, the typical current consumption is 1.5 mA, while in sleep mode, it's around 1 μA. The device also has a shutdown mode that reduces current consumption to less than 1 μA.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTCH6102-I/SS Overview

Use the download button to access the MTCH6102-I/SS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTCH6, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
