MTD6502B-LC1-01 - Microchip

Description: Motor Driver CMOS PWM 10-TDFN (3x3) , 2V ~ 5.5V -40°C ~ 150°C (TJ)

Download MTD6502B-LC1-01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

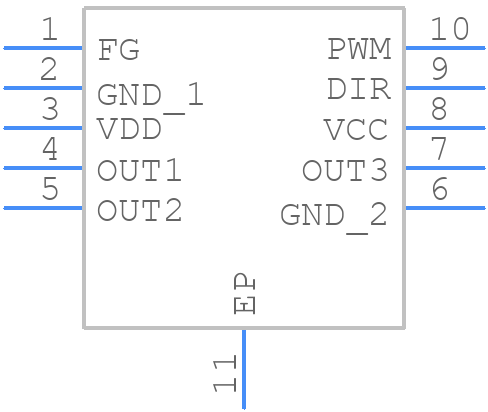

MTD6502B-LC1-01 - Microchip - PCB symbol
click to zoom
PCB Footprints
MTD6502B-LC1-01 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-TDFN (3x3)_2025-1
click to zoom
3D Models
MTD6502B-LC1-01 - Microchip - 3D model - Small Outline No-lead - 10-TDFN (3x3)_2025-1
click to zoom

MTD6502B-LC1-01 Details

  • Manufacturer Part Number:

    MTD6502B-LC1-01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    3 X 3 MM, 0.80 MM HEIGHT, PLASTIC, TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    TDFN-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    29 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MTD6502B-LC1-01 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MTD6502B-LC1-01 is -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -55°C to +150°C.
  • To ensure proper power supply, connect the VCC pin to a stable 3.3V or 5V power source, and the GND pin to a reliable ground connection. Additionally, it's crucial to follow the recommended power-up and power-down sequences to prevent damage or malfunction.
  • The MTD6502B-LC1-01 supports clock frequencies up to 100 MHz. However, it's essential to consult the datasheet for specific clock frequency limitations and requirements for different operating modes.
  • The MTD6502B-LC1-01 can be configured for either SPI or I2C interface by setting the appropriate pins and registers. For SPI mode, set the CS# pin low and configure the SCK, MOSI, and MISO pins accordingly. For I2C mode, set the SCL and SDA pins accordingly and configure the device address using the A0, A1, and A2 pins.
  • The typical current consumption of the MTD6502B-LC1-01 varies depending on the operating mode and frequency. According to the datasheet, the typical active current is around 10mA at 100 MHz, and the standby current is around 10μA. However, it's essential to consult the datasheet for specific current consumption values and to consider power-saving techniques to minimize power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTD6502B-LC1-01 Overview

Use the download button to access the MTD6502B-LC1-01 schematic symbol, PCB footprint, and 3D model.
