MTD6508-E/NA - Microchip

Description: Motor / Motion / Ignition Controllers & Drivers BLDC Motor Driver 5V 3Phase Sensorless

Download MTD6508-E/NA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

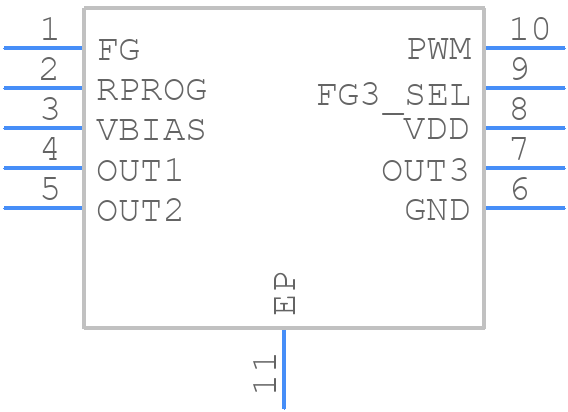

Symbol
MTD6508-E/NA - Microchip - PCB symbol
click to zoom
PCB Footprints
MTD6508-E/NA - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Ultra-thin Dual Flatpack No-Lead (NA[Y]) - 3x3x0.5mm
click to zoom
3D Models
MTD6508-E/NA - Microchip - 3D model - Small Outline No-lead - 10-Lead Ultra-thin Dual Flatpack No-Lead (NA[Y]) - 3x3x0.5mm
click to zoom

MTD6508-E/NA Details

  • Manufacturer Part Number:

    MTD6508-E/NA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, 0.50 MM HEIGHT, UDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    UDFN-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MTD6508-E/NA Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MTD6508-E/NA evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The MTD6508-E/NA has an internal overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values can be calculated based on the desired overcurrent threshold and the device's internal resistance.
  • The MTD6508-E/NA is rated for operation from -40°C to +125°C, but the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain optimal performance.
  • Yes, the MTD6508-E/NA is qualified for automotive and high-reliability applications, meeting the requirements of AEC-Q100 and ISO 26262. However, it's essential to follow Microchip's guidelines for design, testing, and manufacturing to ensure compliance with these standards.
  • Microchip provides a troubleshooting guide for the MTD6508-E/NA, which includes steps for identifying and resolving common issues. Additionally, engineers can use tools like oscilloscopes and logic analyzers to debug the device and identify the root cause of the problem.
