MTFC32GAPALNA-AAT - Micron

Description: eMMC 256G e.MMC Memory

Download MTFC32GAPALNA-AAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

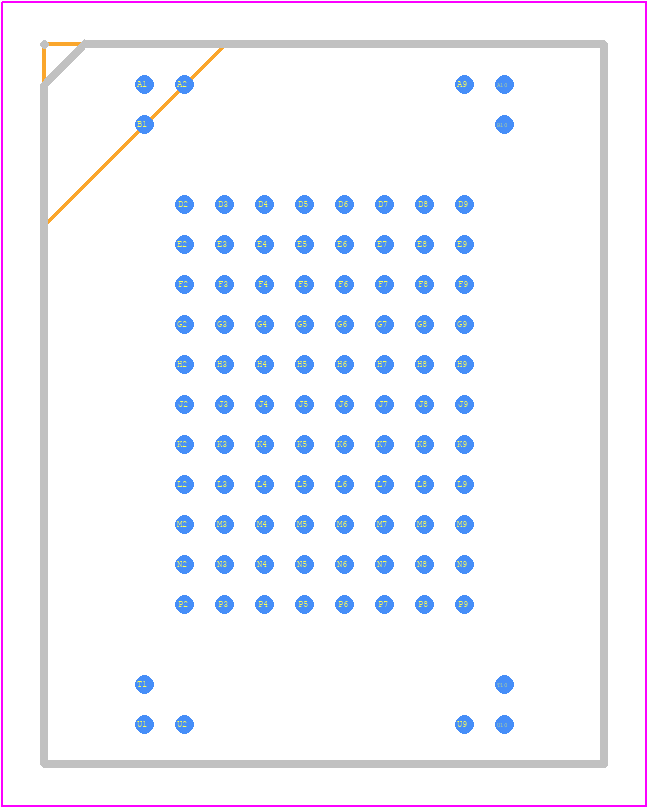

MTFC32GAPALNA-AAT - Micron PCB footprint - BGA - BGA - 100-Ball TBGA – 14mm x 18mm x 1.2mm
click to zoom
3D Models
MTFC32GAPALNA-AAT - Micron  - 3D model - BGA - 100-Ball TBGA – 14mm x 18mm x 1.2mm
click to zoom

MTFC32GAPALNA-AAT Details

  • Manufacturer Part Number:

    MTFC32GAPALNA-AAT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TBGA-100

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2018-11-26

  • Manufacturer:

    Micron Technology Inc

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    200 MHz

  • Command User Interface:

    NO

  • Data Polling:

    NO

  • JESD-30 Code:

    R-PBGA-B100

  • JESD-609 Code:

    e1

  • Length:

    18 mm

  • Memory Density:

    274877906944 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Number of Words:

    34359738368 words

  • Number of Words Code:

    32000000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32GX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA100,10X15,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    2.7 V

  • Ready/Busy:

    YES

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Toggle Bit:

    NO

  • Type:

    NAND TYPE

  • Width:

    14 mm

  • Write Protection:

    HARDWARE

MTFC32GAPALNA-AAT Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for MTFC32GAPALNA-AAT is -25°C to 85°C.
  • During power-on reset, the eMMC interface should be held in reset until the power supply has stabilized and the clock is stable. This ensures that the device initializes correctly.
  • The MTFC32GAPALNA-AAT supports up to 3,000 erase cycles per block, with a total of 4,096 blocks.
  • To optimize performance, ensure that the device is operated within the recommended temperature range, use the correct clock frequency, and optimize the command sequence and data transfer size to minimize latency.
  • Implement error detection and correction mechanisms, such as ECC and CRC, to detect and correct errors. Also, implement exception handling mechanisms to handle unexpected events, such as timeouts and bus errors.
