The recommended land pattern for MTM761110LBF is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
To handle thermal considerations for MTM761110LBF, ensure good thermal conduction by using a thermal pad or thermal via under the component. Keep the surrounding components at a safe distance to prevent thermal interference. Also, consider using a heat sink or thermal interface material (TIM) if the application requires high power dissipation.
The maximum operating temperature range for MTM761110LBF is -40°C to +125°C. However, the component's performance and reliability may degrade if operated at the extreme ends of this range for an extended period.
Yes, MTM761110LBF is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) in the frequency range of 10Hz to 2000Hz. However, it's essential to ensure proper mounting and soldering to prevent mechanical stress and damage.
To ensure the reliability of MTM761110LBF in a humid environment, follow proper storage and handling procedures to prevent moisture absorption. Use a moisture barrier bag or dry pack during storage, and bake the components at 125°C for 24 hours before soldering if they have been exposed to high humidity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MTM761110LBF Overview

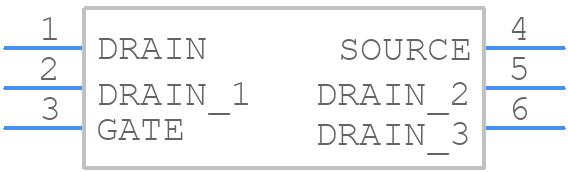

Use the download button to access the MTM761110LBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTM76,
or try a keyword search, such as Small Signal Field-Effect Transistors
