MTQZ50-110S24 - Minmax

Description: MINMAX's MTQZ50 series is a 50-watt DC-DC converters designed with the international standard quarter brick size, specifically for railway applications. The MTQZ50 series offers two widely adopted input voltage ranges in railway applications: 72 (43-101) VDC and 110 (66-160) VDC, with a total of 8 models providing precise output voltages of 5/12/15/24. All models comply with the railway certification standard EN 50155 and also meet the railway EMC standard EN 50121-3-2.

Download MTQZ50-110S24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

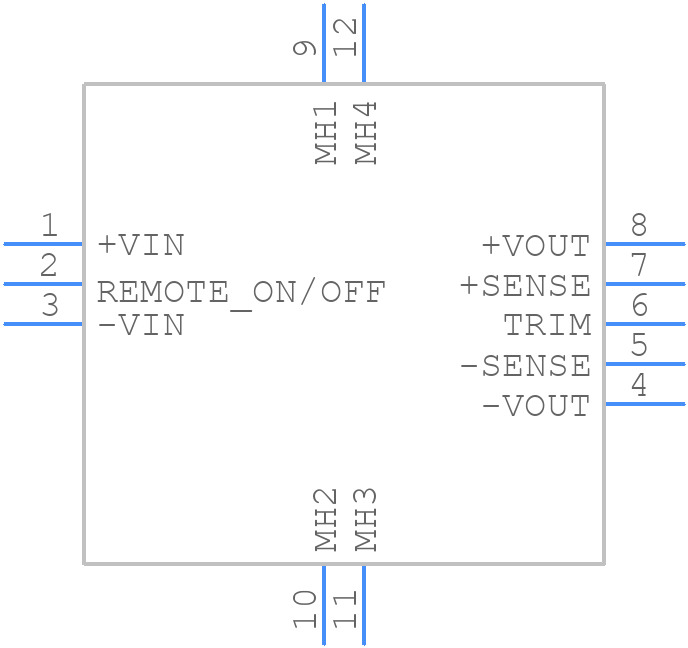

MTQZ50-110S24 - Minmax - PCB symbol
click to zoom
PCB Footprints

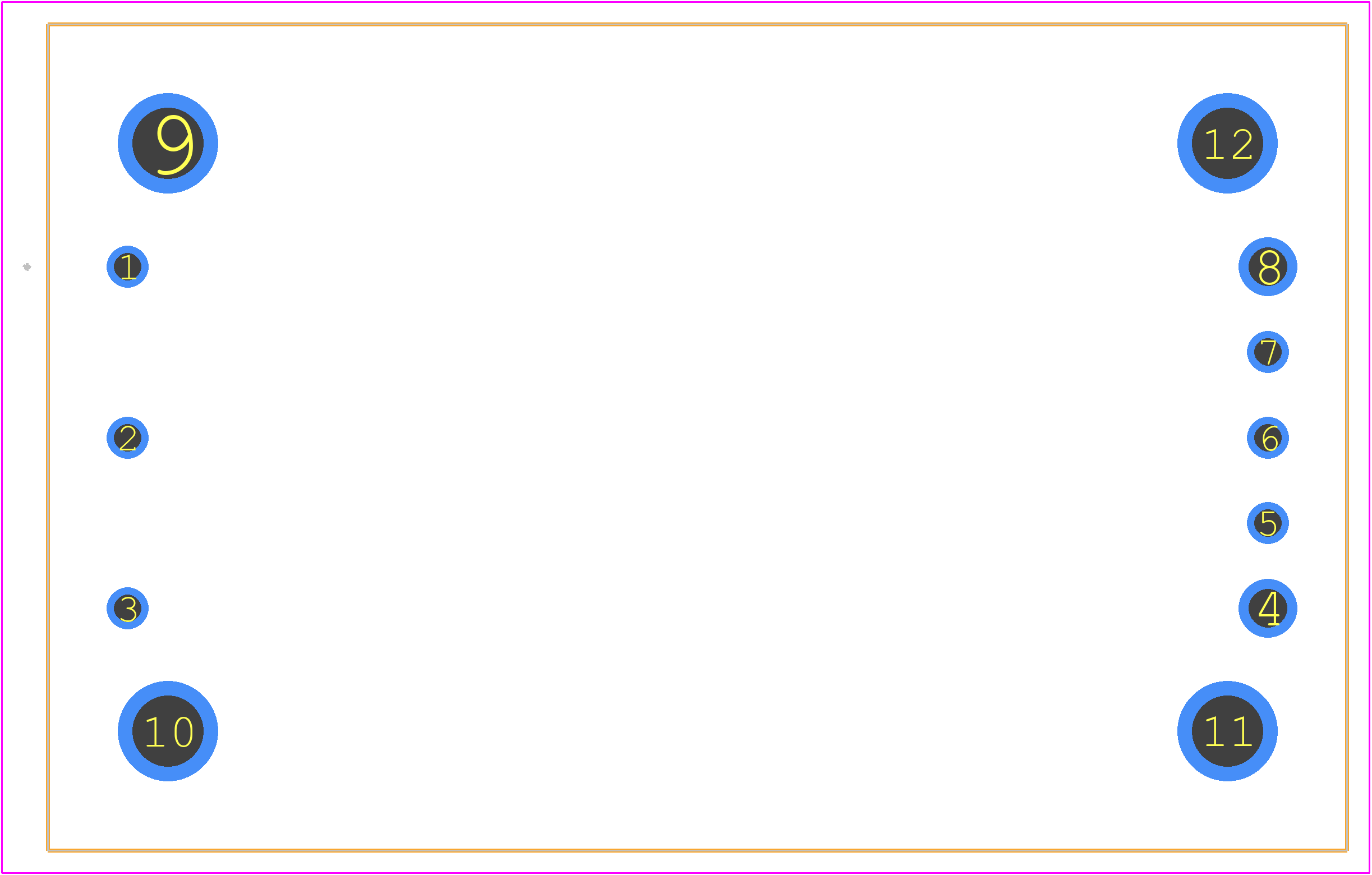

MTQZ50-110S24 - Minmax PCB footprint - Other - Other - 57.9x36.8x12.7
click to zoom
3D Models
MTQZ50-110S24 - Minmax - 3D model - Other - 57.9x36.8x12.7
click to zoom

MTQZ50-110S24 Details

  • Manufacturer Part Number:

    MTQZ50-110S24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTQZ50-110S24 Overview

Use the download button to access the MTQZ50-110S24 schematic symbol, PCB footprint, and 3D model.
