MTQZ75-72S05 - Minmax

Description: The MTQZ75 series is a 75-watt DC-DC converter designed for high-performance applications in railway settings. The series is designed in a quarter brick size according to international standards, featuring fully encapsulated potting assembly to resist external environmental interference. Two widely accepted input voltage ranges are offered: 72 (43-101)VDC and 110 (66-160)VDC, with a total of 8 selectable models providing precise output voltages of 5/12/15/24. All models comply with railway certification sta

Download MTQZ75-72S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

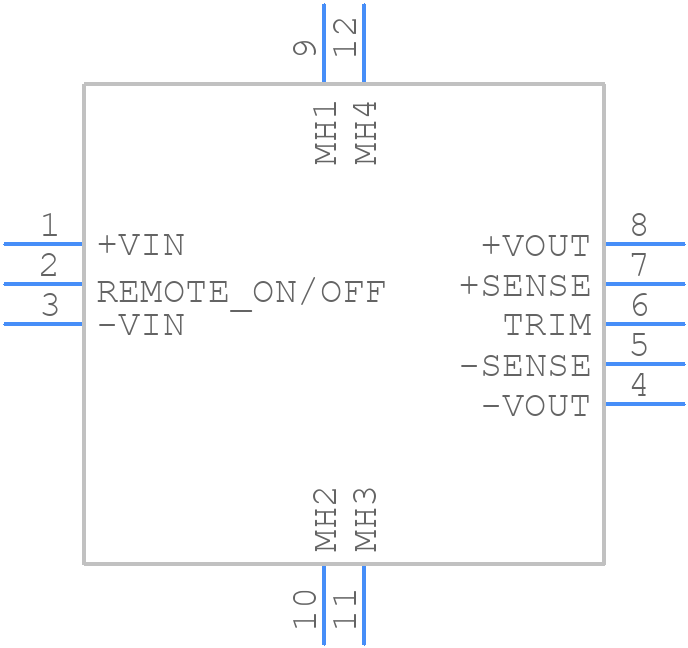

MTQZ75-72S05 - Minmax - PCB symbol
click to zoom
PCB Footprints

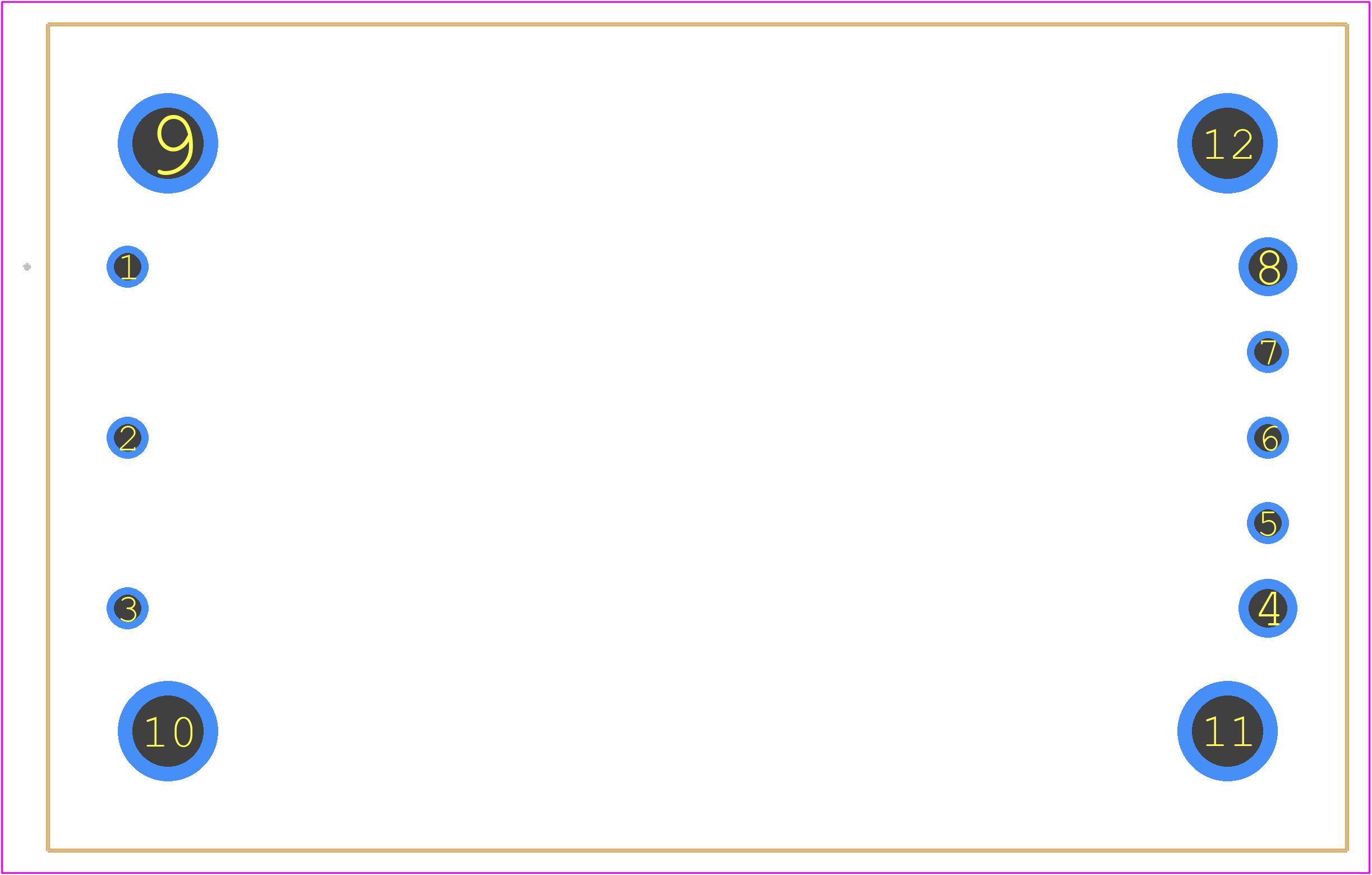

MTQZ75-72S05 - Minmax PCB footprint - Other - Other - 57.9x36.8x12.7
