MTS2916A-HGC1 - Microchip

Description: Microchip MTS2916A-HGC1 Motor Driver, 750mA, 24-Pin SOP

Download MTS2916A-HGC1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

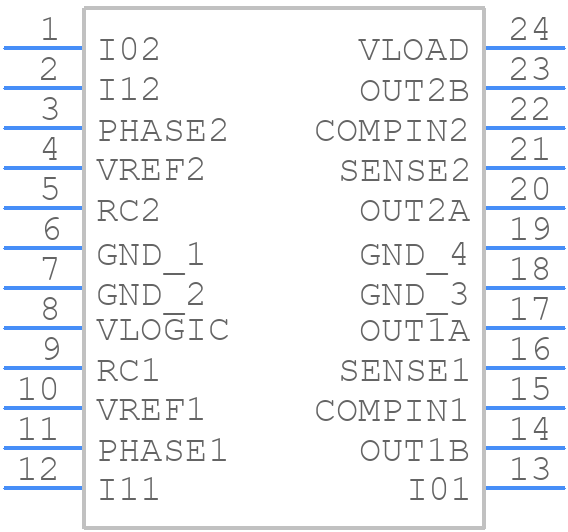

MTS2916A-HGC1 - Microchip - PCB symbol
click to zoom
PCB Footprints

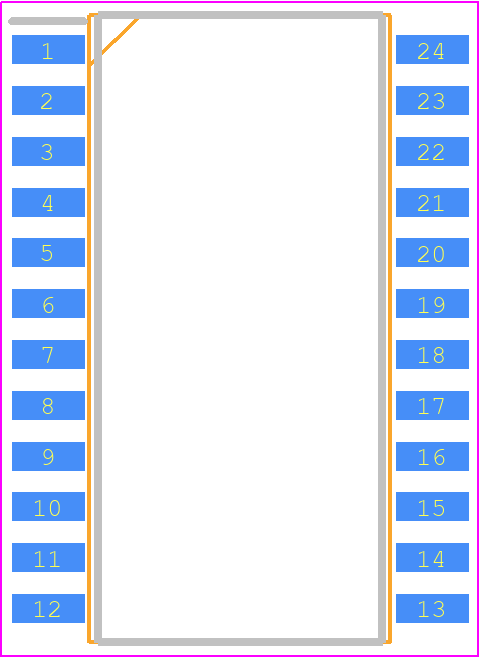

MTS2916A-HGC1 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOP 24L
click to zoom
3D Models
MTS2916A-HGC1 - Microchip - 3D model - Small Outline Packages - SOP 24L
click to zoom

MTS2916A-HGC1 Details

  • Manufacturer Part Number:

    MTS2916A-HGC1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    SOIC-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.697 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.642 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.518 mm

MTS2916A-HGC1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Follow the calibration procedure outlined in the datasheet, which involves applying a known temperature to the device and adjusting the offset and gain registers accordingly. It's also recommended to perform a 2-point calibration for improved accuracy.
  • The maximum cable length for the I2C interface is dependent on the clock frequency and the capacitance of the cable. As a general guideline, a cable length of up to 10 meters is recommended for a clock frequency of 400 kHz.
  • The thermal shutdown feature is enabled by default. When the device temperature exceeds 150°C, the output will be disabled. To handle this, implement a thermal monitoring system to detect when the device is approaching the thermal shutdown threshold, and take corrective action to reduce the device temperature.
  • Power up the device in the following sequence: VDD, AVDD, and then the digital supply (VDDIO). Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
