MTS62C19A-LS105 - Microchip

Description: Motor / Motion / Ignition Controllers & Drivers Dual Full-Bridge PWM Motor DRI

Download MTS62C19A-LS105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

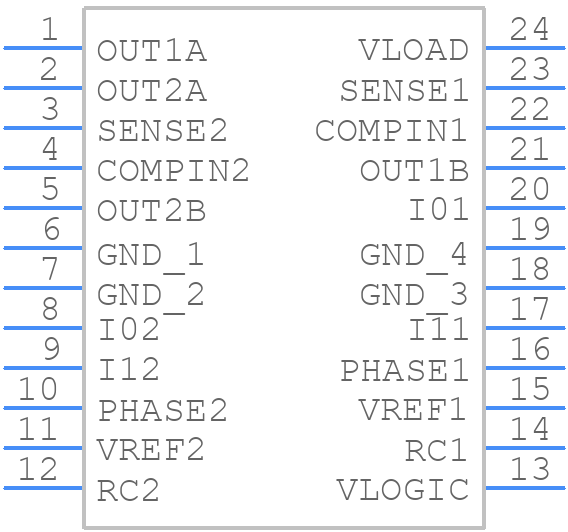

MTS62C19A-LS105 - Microchip - PCB symbol
click to zoom
PCB Footprints

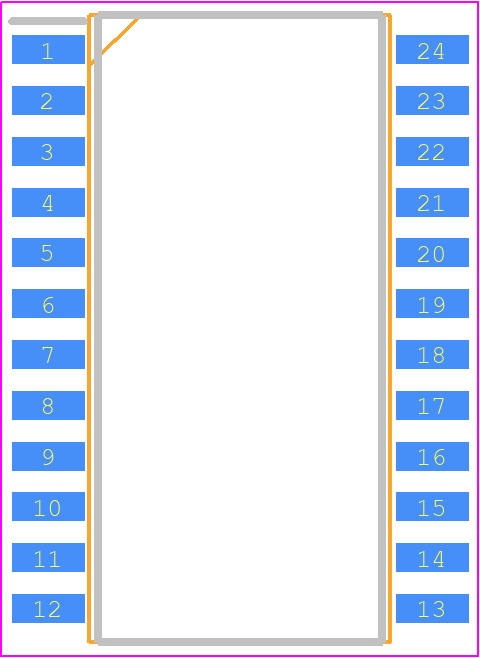

MTS62C19A-LS105 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOP 24L
click to zoom
3D Models
MTS62C19A-LS105 - Microchip - 3D model - Small Outline Packages - SOP 24L
click to zoom

MTS62C19A-LS105 Details

  • Manufacturer Part Number:

    MTS62C19A-LS105

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    SOIC-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    29 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO REQUIRED LOAD SUPPLY VOLTAGE OF 10V TO 40V

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.697 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.642 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.518 mm

MTS62C19A-LS105 Frequently Asked Questions (FAQs)

  • A good PCB layout for the MTS62C19A-LS105 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. Microchip provides a recommended PCB layout in their application notes.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known temperature to the device and adjusting the offset and gain registers accordingly. It's also important to perform calibration over the entire operating temperature range.
  • The maximum cable length for the I2C interface of the MTS62C19A-LS105 depends on the clock frequency and the capacitance of the cable. As a general rule, keep the cable length as short as possible (less than 10 inches) to minimize signal degradation and ensure reliable communication.
  • To handle thermal shock and vibration, ensure the device is properly mounted and secured to the PCB, and consider using thermal interface materials to improve heat transfer. Additionally, follow proper soldering and assembly techniques to prevent mechanical stress on the device.
  • The recommended power-up sequence for the MTS62C19A-LS105 involves applying power to the VDD pin first, followed by the VSS pin. This ensures that the internal voltage regulator is properly enabled before the device starts operating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTS62C19A-LS105 Overview

Use the download button to access the MTS62C19A-LS105 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTS62, or try a keyword search, such as Motion Control Electronics

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
