MTX2-183+ - Mini-Circuits

Description: Signal Conditioning 1:2 MMIC Transformer, 2 - 18 GHz, 50?

Download MTX2-183+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

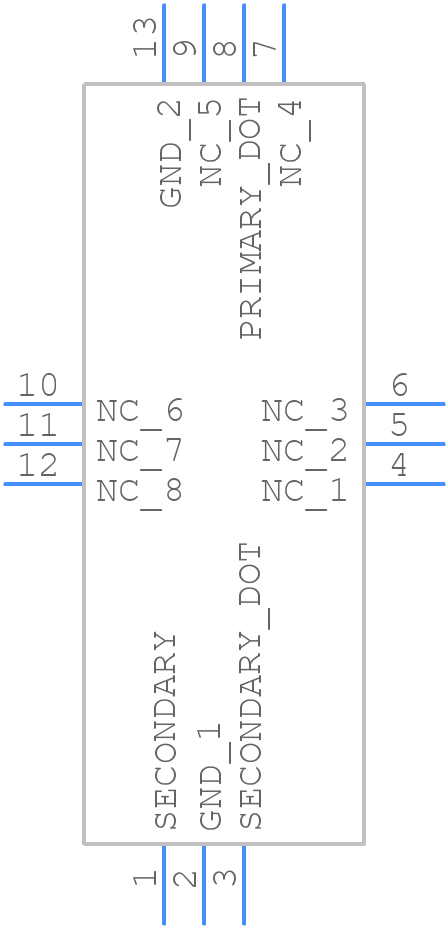

MTX2-183+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
MTX2-183+ - Mini-Circuits PCB footprint - Other - Other - 3x4 mm 12-Lead QFN
click to zoom
3D Models
MTX2-183+ - Mini-Circuits - 3D model - Other - 3x4 mm 12-Lead QFN
click to zoom

MTX2-183+ Details

  • Manufacturer Part Number:

    MTX2-183+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Cut-off Frequency-Min:

    2000 MHz

  • Height:

    0.9 mm

  • Insertion Loss:

    7.3 dB

  • Length:

    4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -45 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3 mm

MTX2-183+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The MTX2-183+ has a maximum junction temperature of 150°C. To handle heat generation, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider adding a heat sink or thermal pad to dissipate heat.
  • The MTX2-183+ is designed for 50Ω input and output impedance. To achieve optimal performance, ensure that the input and output impedance of the surrounding circuitry is matched to 50Ω using impedance matching networks or transformers.
  • Handle the device with ESD-safe materials and tools, and ensure that the PCB and surrounding components are designed with ESD protection in mind. Consider adding ESD protection diodes or resistors to the input and output lines.
  • While the datasheet specifies a frequency range of 100 MHz to 18 GHz, the device can be operated up to 20 GHz with some degradation in performance. However, it's essential to consult with Mini-Circuits' application engineers for specific guidance on operating the device beyond the specified frequency range.
