MTY2-243+ - Mini-Circuits

Description: Signal Conditioning 1:2 MMIC Transformer, 10000 - 24000 MHz, 50ohm

Download MTY2-243+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

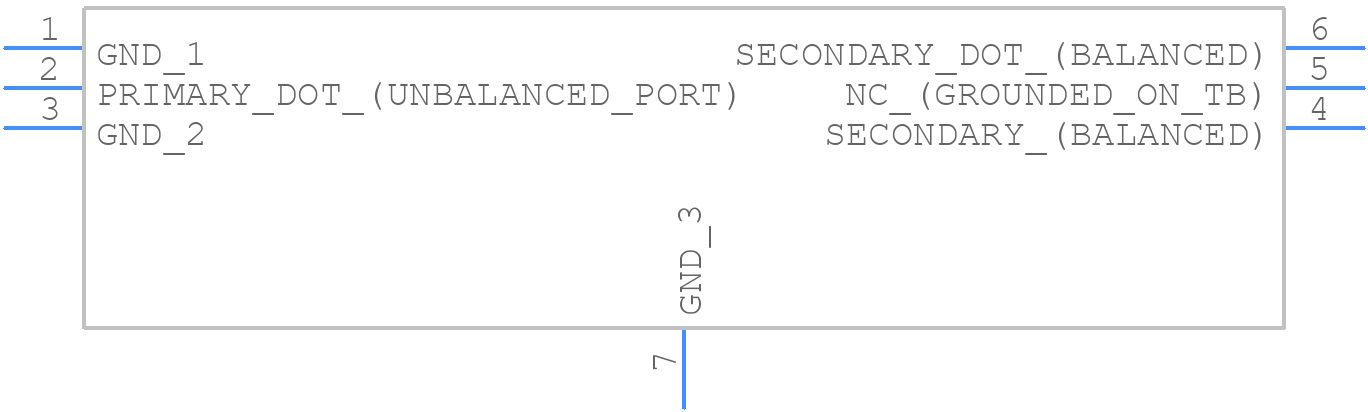

Symbol
MTY2-243+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
MTY2-243+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MTY2-243+
click to zoom
3D Models
MTY2-243+ - Mini-Circuits - 3D model - Small Outline No-lead - MTY2-243+
click to zoom

MTY2-243+ Details

  • Manufacturer Part Number:

    MTY2-243+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Cut-off Frequency-Max:

    24000 MHz

  • Cut-off Frequency-Min:

    10000 MHz

  • Height:

    1 mm

  • Insertion Loss:

    2.2 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    2 mm

MTY2-243+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The MTY2-243+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the amplifier's input and output impedance to your system's impedance. You can use online impedance matching tools or consult with an RF engineer for assistance.
  • The MTY2-243+ is rated for operation from -40°C to +85°C. However, it's recommended to derate the amplifier's power dissipation above 60°C to ensure reliable operation and prevent overheating.
  • Yes, the MTY2-243+ can be used in a push-pull configuration to improve linearity and reduce distortion. However, this requires careful design and layout to ensure proper phasing and impedance matching.
  • The MTY2-243+ requires a single positive supply voltage (Vcc) and a negative supply voltage (Vee) for biasing. A recommended biasing scheme is to use a voltage divider network to set the gate voltage, and a current-limiting resistor to set the drain current. Consult the datasheet and application notes for more information.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MTY2-243+ Overview

Use the download button to access the MTY2-243+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTY2-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
