MUP-U5016-01 - MUP

Description: MUP 5 Pin Micro USB connector socket With ear shell DIP Micro USB reader Housing for PCB Power (1,5Pin): 1.8A Signal (2,3,4Pin): 0.5A,Voltage Rating: 30V DC,Operating Temperature : -40℃ to 85℃ Conn

Download MUP-U5016-01 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MUP-U5016-01 model

Email notifications will be applied after download.

Send part feedback

Symbol

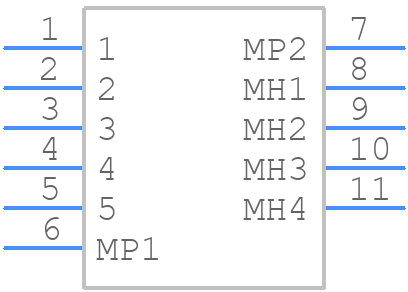

MUP-U5016-01 - MUP - PCB symbol

PCB Footprints

MUP-U5016-01 - MUP PCB footprint - Other - Other - MUP-U5016-01-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for MUP-U5016-01
Part Number MUP-U5016-01
Manufacturer MUP
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - MUP-U5016-01-3
Released Date Oct 28, 2024
Last Modified Date Oct 28, 2024 7:24 AM UTC
Pinout / Pin List Click Here (Member Only)

MUP-U5016-01 Details

Manufacturer Part Number:
MUP-U5016-01
Manufacturer:
Shenzhen MUP Industrial Co Ltd
