MUSES72320V-TE2 - Nisshinbo

Description: ±18V Operation 2-Channel Electronic Volume SSOP32

Download MUSES72320V-TE2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

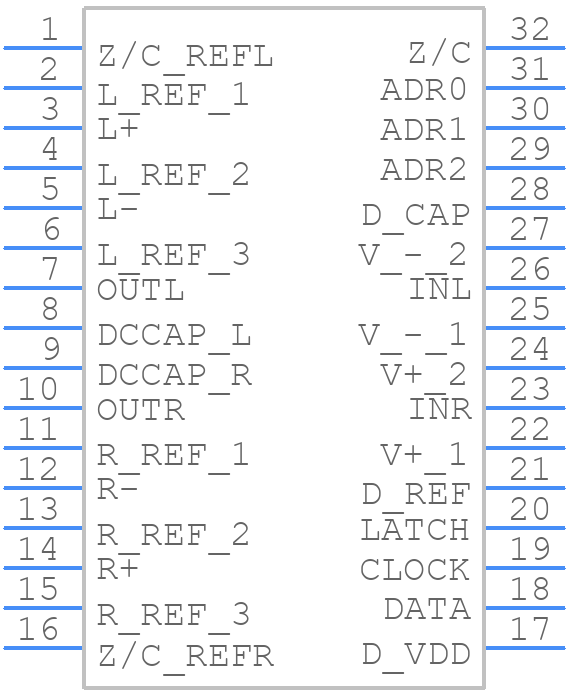

MUSES72320V-TE2 - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - SSOP32
click to zoom
3D Models
MUSES72320V-TE2 - Nisshinbo  - 3D model - Small Outline Packages - SSOP32
click to zoom

MUSES72320V-TE2 Details

  • Manufacturer Part Number:

    MUSES72320V-TE2

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • Channel Separation:

    120 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • Harmonic Distortion:

    0.001%

  • JESD-30 Code:

    R-PDSO-G32

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    TSOP32(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL
