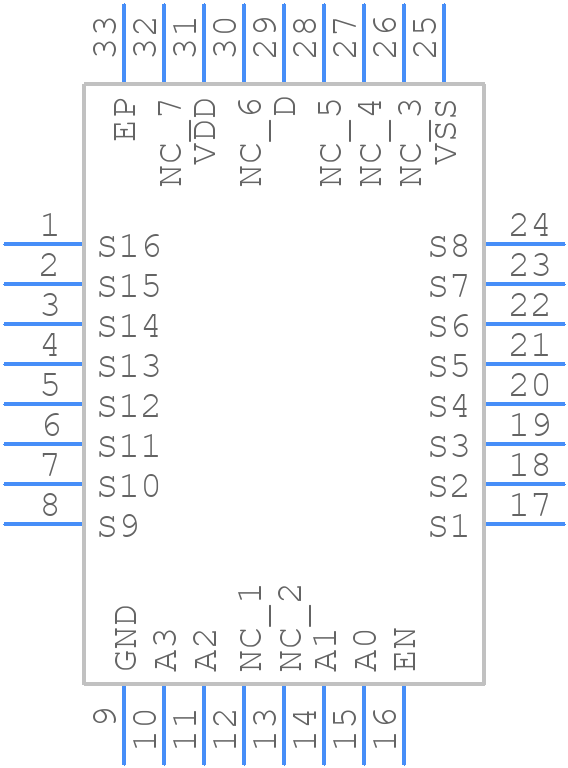

MUX36D08IRSNR - Texas Instruments

MUX36D08IRSNR Details

• Manufacturer Part Number:

  MUX36D08IRSNR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  Configuration : 8:1

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• Bandwidth-Nom:

  500 MHz

• JESD-30 Code:

  S-PQCC-N32

• JESD-609 Code:

  e4

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Max (Vsup):

  -18 V

• Neg Supply Voltage-Min (Vsup):

  -5 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  32

• On-state Resistance Match-Nom:

  6 Ω

• On-state Resistance-Max (Ron):

  430 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.16SQ,16

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Supply Current-Max (Isup):

  0.069 mA

• Supply Voltage-Max (Vsup):

  36 V

• Supply Voltage-Min (Vsup):

  5 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  97 ns

• Switch-on Time-Max:

  151 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm
