MV-1004 - Altech

Description: Position Wire to Board Terminal Block PCB TERM BLOCK 1016MMPS 4P VERT

Download MV-1004 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MV-1004 - Altech - PCB symbol
click to zoom
PCB Footprints

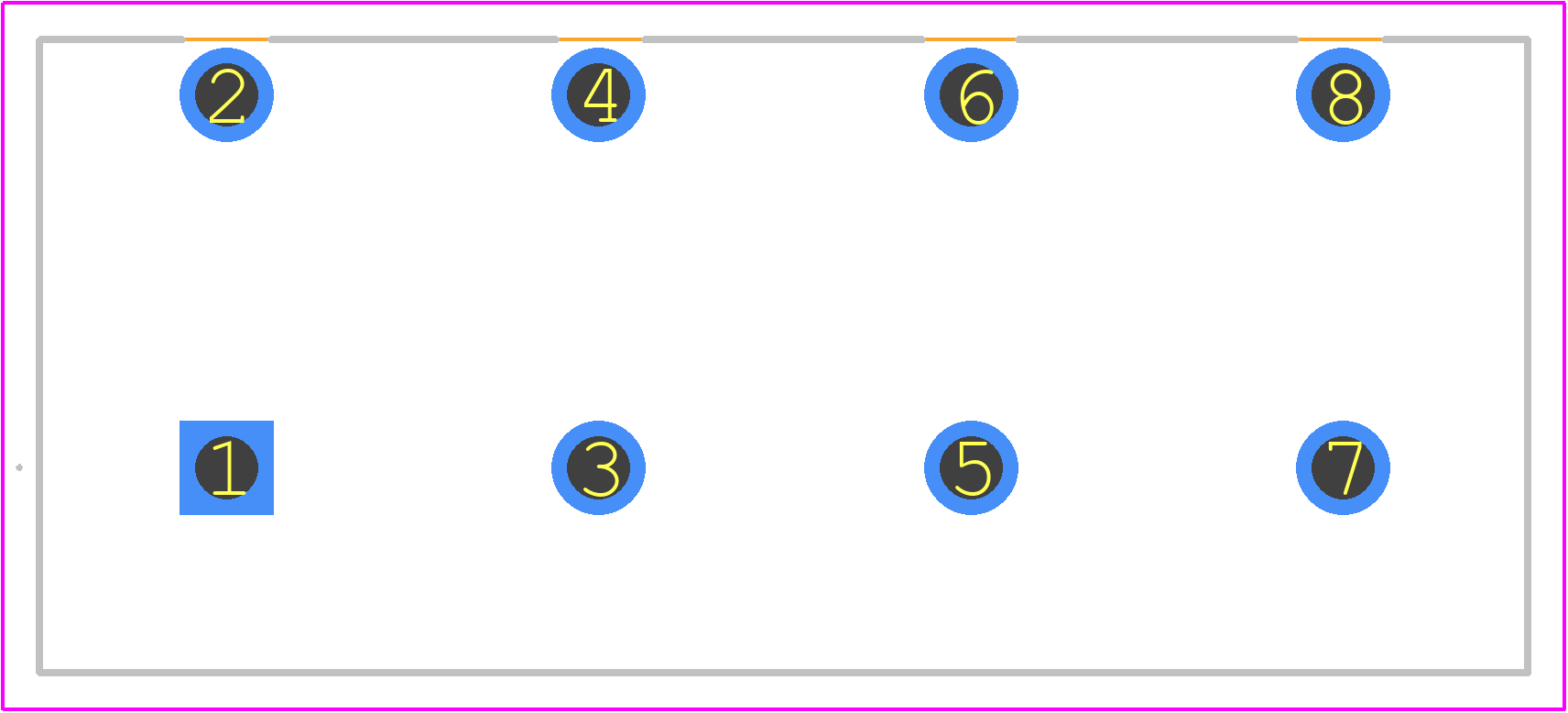

MV-1004 - Altech PCB footprint - Other - Other - MV-1004-2
click to zoom
3D Models
MV-1004 - Altech - 3D model - Other - MV-1004-2
click to zoom

MV-1004 Details

  • Manufacturer Part Number:

    MV-1004

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Altech Corporation

  • YTEOL:

    7.32

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

MV-1004 Frequently Asked Questions (FAQs)

  • The recommended torque value for the terminal screws is 0.5-0.8 Nm (5-8 in-lbs).
  • Yes, the MV-1004 is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard.
  • The maximum wire size that can be used with the MV-1004 is 2.5 mm² (14 AWG).
  • No, the MV-1004 is not designed for use in hazardous locations. It does not meet the requirements for explosion-proof or intrinsically safe applications.
  • Yes, the MV-1004 can be mounted on a DIN rail using the optional DIN rail mounting kit (part number MV-1004-DIN).
