MVF50NN151CMK40 - NXP

Description: Microprocessors - MPU A5-400, M4, GPU No Security

Download MVF50NN151CMK40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MVF50NN151CMK40 - NXP - PCB symbol
click to zoom
PCB Footprints

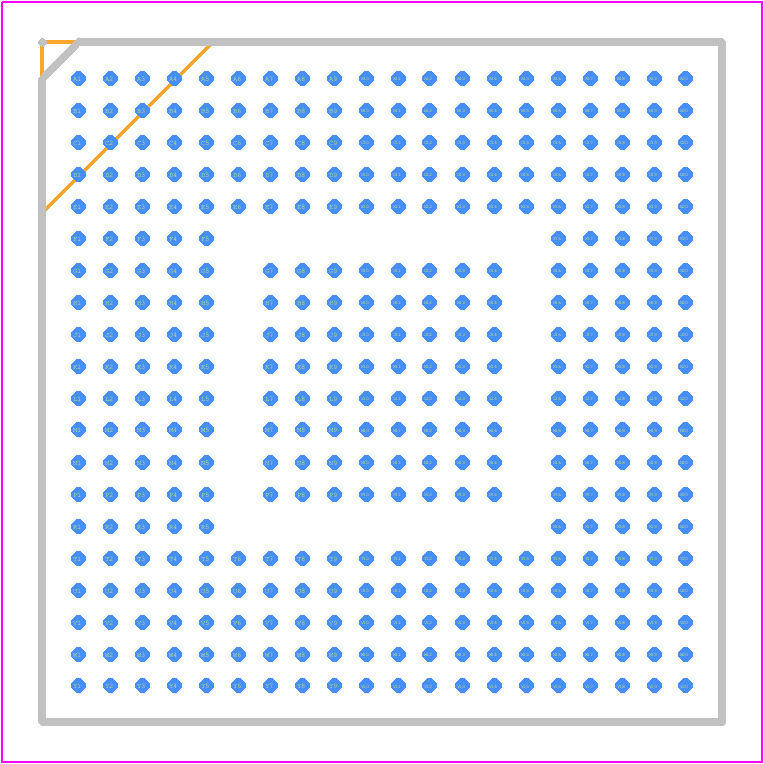

MVF50NN151CMK40 - NXP PCB footprint - BGA - BGA - SOT1517-1
click to zoom
3D Models
MVF50NN151CMK40 - NXP - 3D model - BGA - SOT1517-1
click to zoom

MVF50NN151CMK40 Details

  • Manufacturer Part Number:

    MVF50NN151CMK40

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MAPBGA-364

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Has ADC:

    YES

  • Address Bus Width:

    16

  • Bit Size:

    16

  • CPU Family:

    CORTEX-A5

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    S-PBGA-B364

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    131

  • Number of Terminals:

    364

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA364,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    1572864

  • ROM Programmability:

    FLASH

  • Speed:

    400 MHz

  • Supply Current-Max:

    850 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.16 V

  • Supply Voltage-Nom:

    1.23 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MVF50NN151CMK40 Frequently Asked Questions (FAQs)

  • NXP recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure reliable operation at high temperatures, follow the recommended operating conditions, use a suitable thermal design, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • The MVF50NN151CMK40 has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and testing. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh environments or handling.
  • Yes, the MVF50NN151CMK40 is suitable for high-reliability and automotive applications. NXP provides additional documentation and support for these applications, including AEC-Q100 qualification and PPAP (Production Part Approval Process) support.
  • To troubleshoot issues with the internal voltage regulator, check the input voltage, output voltage, and current consumption. Ensure that the input voltage is within the recommended range, and the output voltage is within the specified tolerance. Also, verify that the device is not overheating and that the PCB layout is correct.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MVF50NN151CMK40 Overview

Use the download button to access the MVF50NN151CMK40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MVF50, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
