MVF60NN152CMK50 - NXP

Description: Microprocessors - MPU Vybrid F 32-bit MPU, ARM Cortex-A5 core, 500 MHz, ARM Cortex-M4 core, 266 MHz, MAPBGA 364

Download MVF60NN152CMK50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MVF60NN152CMK50 - NXP - PCB symbol
click to zoom
PCB Footprints

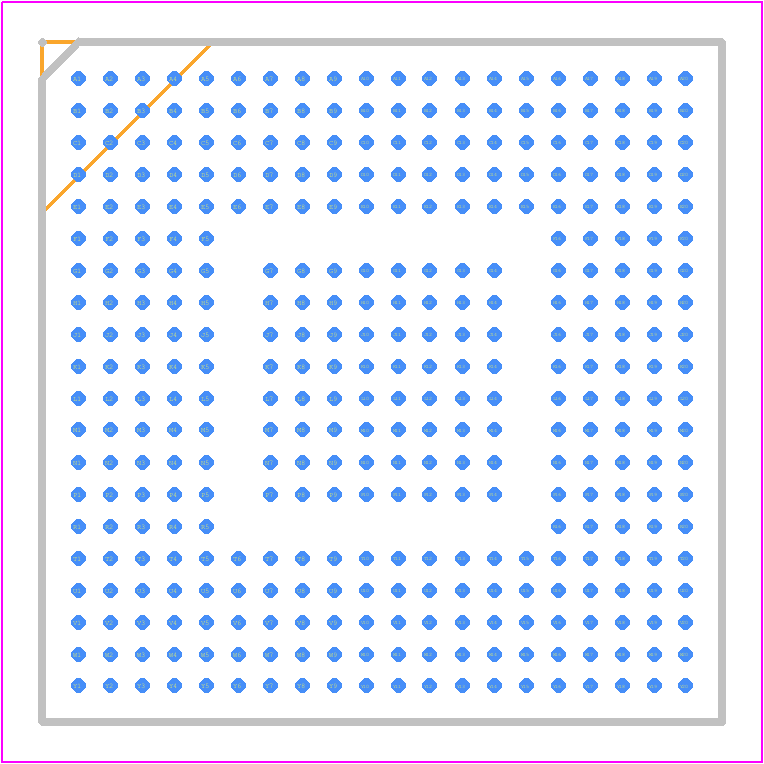

MVF60NN152CMK50 - NXP PCB footprint - BGA - BGA - SOT1517-1
click to zoom
3D Models
MVF60NN152CMK50 - NXP - 3D model - BGA - SOT1517-1
click to zoom

MVF60NN152CMK50 Details

  • Manufacturer Part Number:

    MVF60NN152CMK50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-364

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5.5

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    24 MHz

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B364

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    32

  • Number of Serial I/Os:

    7

  • Number of Terminals:

    364

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA364,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    1572864

  • Seated Height-Max:

    1.5 mm

  • Speed:

    500 MHz

  • Supply Current-Max:

    850 mA

  • Supply Voltage-Max:

    1.1 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

MVF60NN152CMK50 Frequently Asked Questions (FAQs)

  • A good PCB layout should ensure minimal thermal resistance, use thermal vias, and keep high-current paths short. A heat sink or thermal pad can be used to dissipate heat. Consult NXP's application notes for specific guidance.
  • Follow NXP's EMC guidelines, use a shielded enclosure, and implement filtering and shielding techniques. Ensure proper grounding, decoupling, and layout to minimize EMI.
  • Implement overcurrent protection using a fuse or a current-sensing resistor. Use the device's built-in fault detection features, such as overtemperature and overvoltage protection. Monitor the device's status pins to detect faults.
  • Consult NXP's application notes and reference designs for guidance on optimizing performance and efficiency. Consider factors like input voltage, output current, and switching frequency to minimize losses.
  • The device's reliability and lifespan depend on factors like operating conditions, temperature, and quality of the PCB. Consult NXP's reliability data and follow recommended usage guidelines to ensure optimal lifespan.
