MWCT1011CFM - NXP

Description: Wireless Charging ICs 15W, Single-Coil Consumer, Standard, QFN 32

Download MWCT1011CFM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

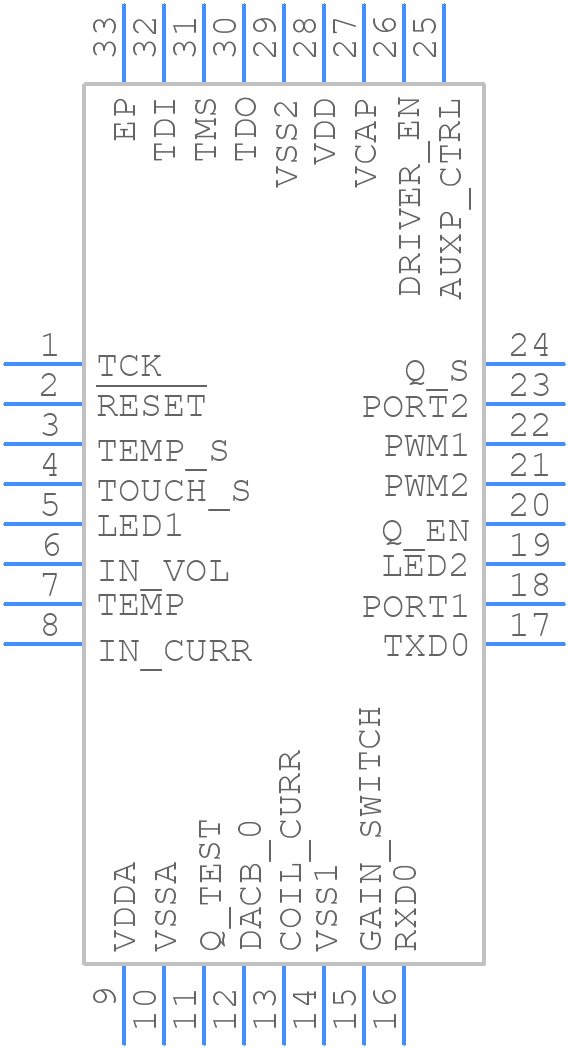

MWCT1011CFM - NXP - PCB symbol
click to zoom
PCB Footprints
MWCT1011CFM - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN32 (SOT617-17)
click to zoom
3D Models
MWCT1011CFM - NXP - 3D model - Quad Flat No-Lead - HVQFN32 (SOT617-17)
click to zoom

MWCT1011CFM Details

  • Manufacturer Part Number:

    MWCT1011CFM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

MWCT1011CFM Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a 50-ohm microstrip line for the RF output.
  • Use a thermal pad or a heat sink to dissipate heat. Ensure good airflow around the device. Avoid operating the device near its maximum temperature rating for extended periods.
  • The recommended input power level is between -20 dBm and 0 dBm. Exceeding this range may cause compression or damage to the device.
  • Use a high-quality, low-noise voltage regulator to power the device. Ensure the input signal is well-matched to the device's input impedance. Optimize the bias voltage and current for the specific application.
  • The MWCT1011CFM is designed to operate up to 1.1 GHz. However, the device's performance may degrade above 900 MHz. Consult the datasheet and application notes for specific frequency-related information.
