MX25L12872FZNI-10G - Macronix

Description: FLASH - NOR Memory IC 128Mbit SPI - Quad I/O, QPI 133 MHz 8-WSON (6x5)

Download MX25L12872FZNI-10G Model
Schematic

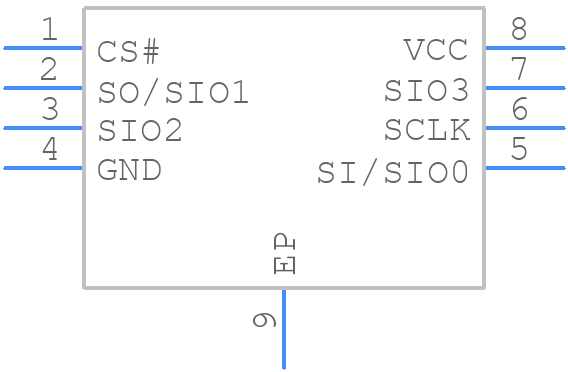

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25L12872FZNI-10G - Macronix PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-LAND USON (4x4mm)1
click to zoom
3D Models
MX25L12872FZNI-10G - Macronix  - 3D model - Small Outline No-lead - 8-LAND USON (4x4mm)1
click to zoom

MX25L12872FZNI-10G Details

  • Manufacturer Part Number:

    MX25L12872FZNI-10G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    3

  • Additional Feature:

    ALSO IT CAN BE CONFIGURED AS 64M X 2 AND 128M X 1

  • Alternate Memory Width:

    4

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25L12872FZNI-10G Frequently Asked Questions (FAQs)

  • The MX25L12872FZNI-10G has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
  • The hold pin (HOLD#) should be pulled high during power-up and power-down sequences to prevent unwanted commands from being executed. It's recommended to tie the HOLD# pin to VCC through a resistor to ensure it's in a high state during power transitions.
  • The recommended clock frequency for the MX25L12872FZNI-10G is up to 104 MHz. However, the actual clock frequency may vary depending on the system design and application requirements.
  • The WP# pin should be tied to VCC or left floating during normal operation to allow write operations. Tying the WP# pin to GND will enable write protection and prevent accidental writes to the device.
  • The Deep Power-Down (DPD) mode is a low-power state that reduces the device's power consumption to a minimum. It's intended for use in battery-powered applications where power consumption needs to be minimized during idle periods.
