MX25L512COI-12G - Macronix

Description: Flash, 5MX1, PDSO8

Download MX25L512COI-12G Model

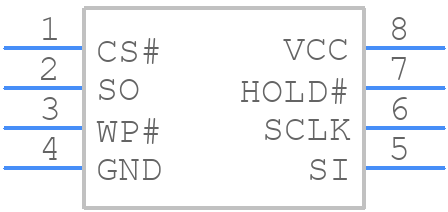

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

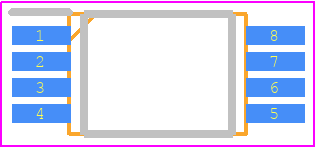

MX25L512COI-12G - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP 8L (173MIL)
click to zoom
3D Models
MX25L512COI-12G - Macronix  - 3D model - Small Outline Packages - TSSOP 8L (173MIL)
click to zoom

MX25L512COI-12G Details

  • Manufacturer Part Number:

    MX25L512COI-12G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    0.173 INCH, ROHS COMPLIANT, MO-153, TSSOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    85 MHz

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.4 mm

  • Memory Density:

    5242880 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    65536 words

  • Number of Words Code:

    64000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3.3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    3 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25L512COI-12G Frequently Asked Questions (FAQs)

  • The MX25L512COI-12G has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The HOLD# pin should be pulled high during low power modes to prevent any unwanted commands from being executed. It's recommended to use an external pull-up resistor to ensure the pin is held high.
  • The recommended clock frequency for the MX25L512COI-12G is up to 104 MHz, but it can operate at lower frequencies as well. However, the device may not function correctly if the clock frequency is too low.
  • To ensure data integrity, it's recommended to follow the power-down and power-up sequences specified in the datasheet. Additionally, it's recommended to use a voltage supervisor or a power-on reset circuit to ensure the device is properly initialized during power-up.
  • The MX25L512COI-12G has an operating temperature range of -40°C to 85°C, but it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
