The MX25R6435FBDIL0 has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
The HOLD# signal should be kept low during read and write operations. If the HOLD# signal is asserted high, the device will enter a 'hold' state, and all operations will be suspended until the HOLD# signal is de-asserted.
The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures that the device is properly initialized and ready for operation.
The WP# signal should be tied low to enable write operations. If WP# is tied high, the device will be in a write-protected state, and all write operations will be blocked.
The maximum operating frequency for the MX25R6435FBDIL0 is 104 MHz. Operating the device above this frequency may result in unreliable operation or damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MX25R6435FBDIL0 Overview

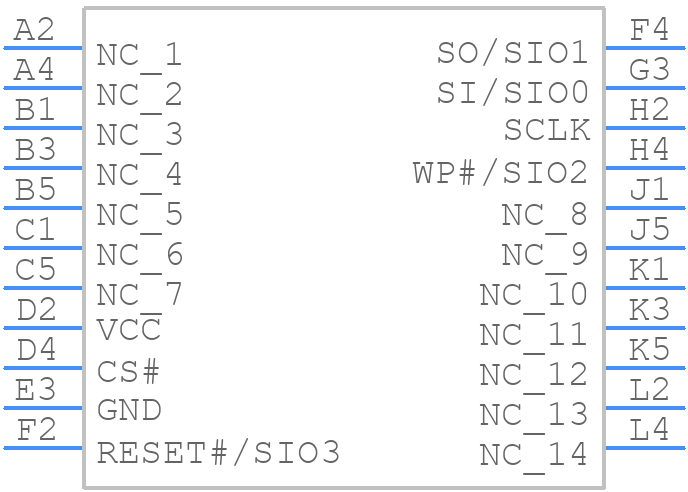

Use the download button to access the MX25R6435FBDIL0 schematic symbol, PCB footprint, and 3D model.
